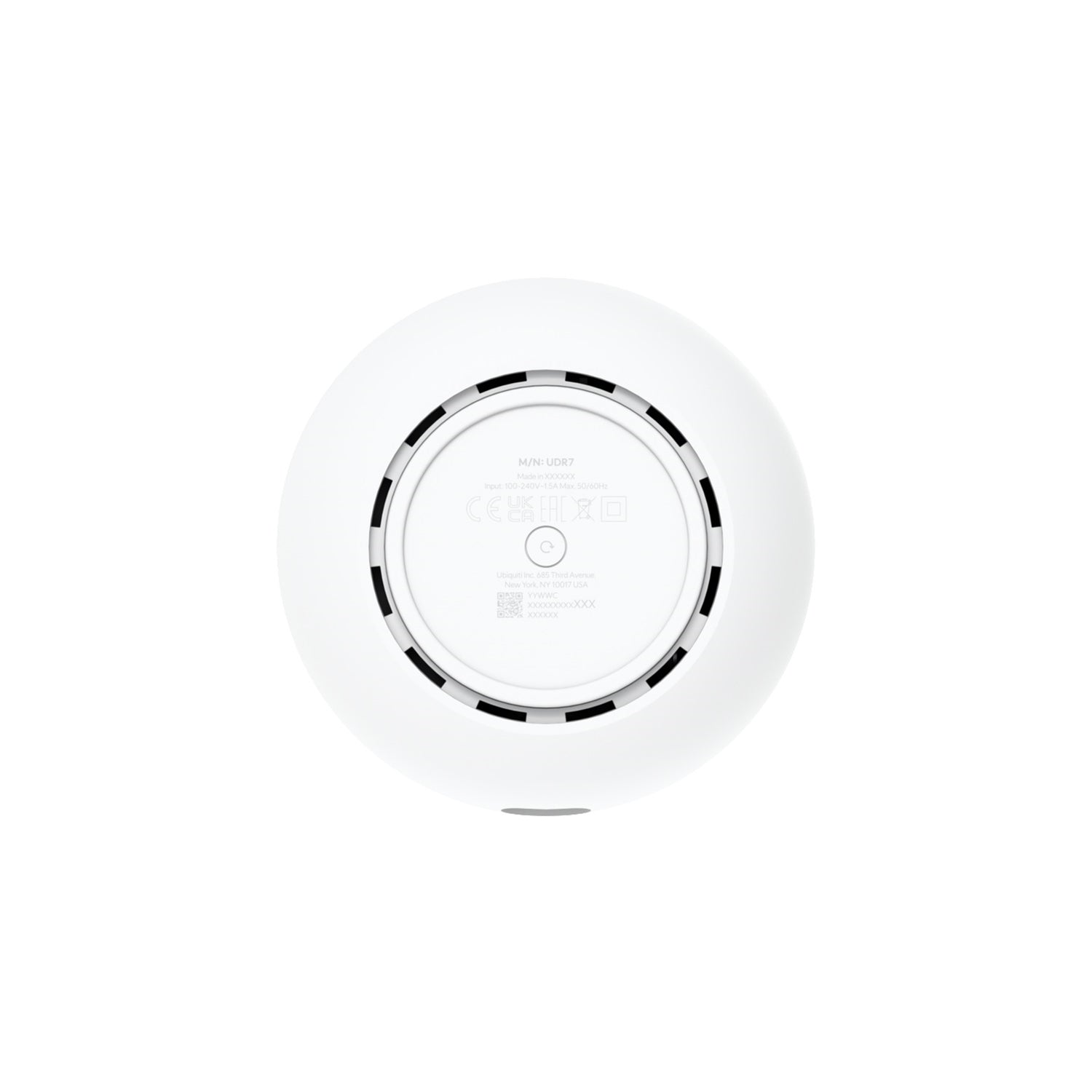

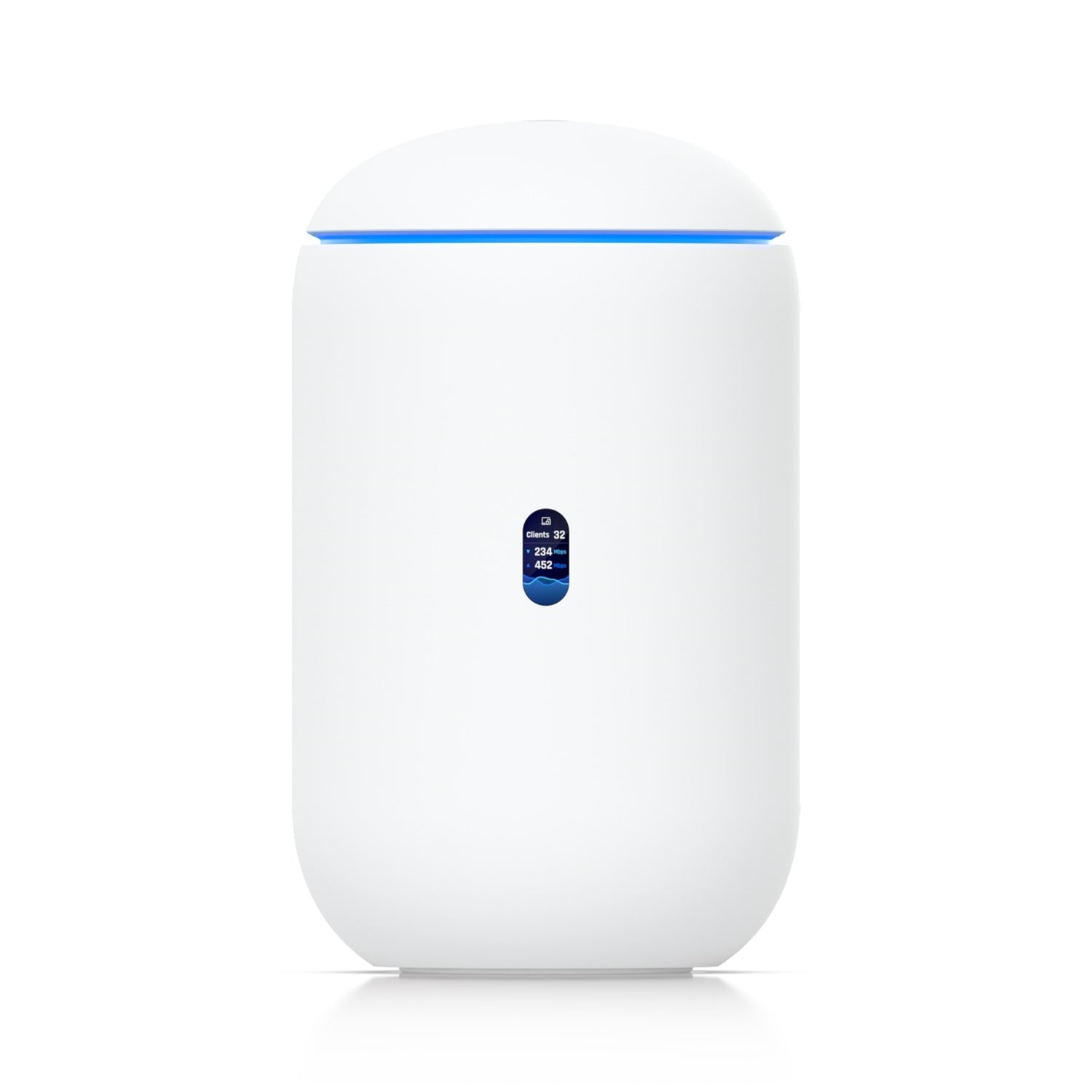

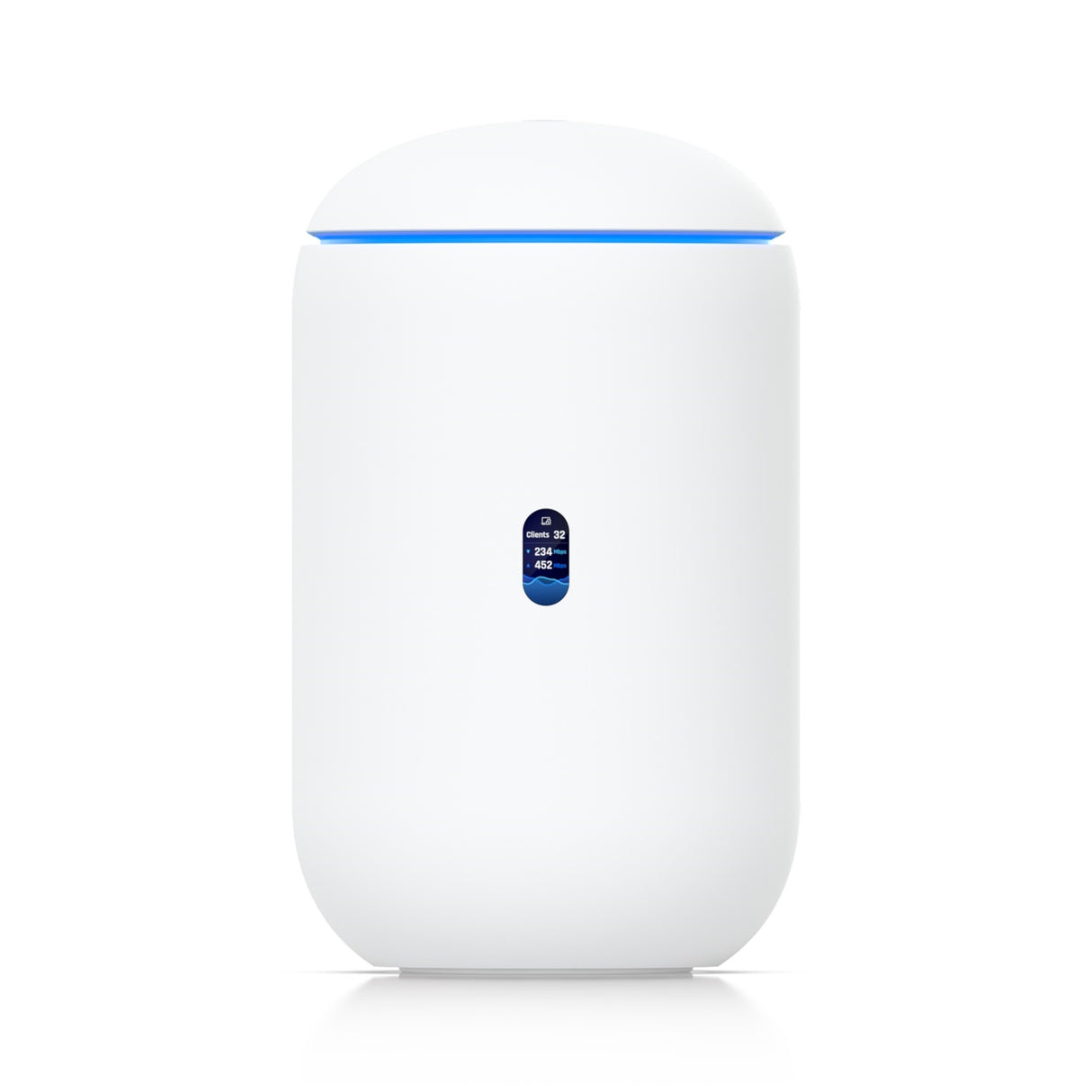

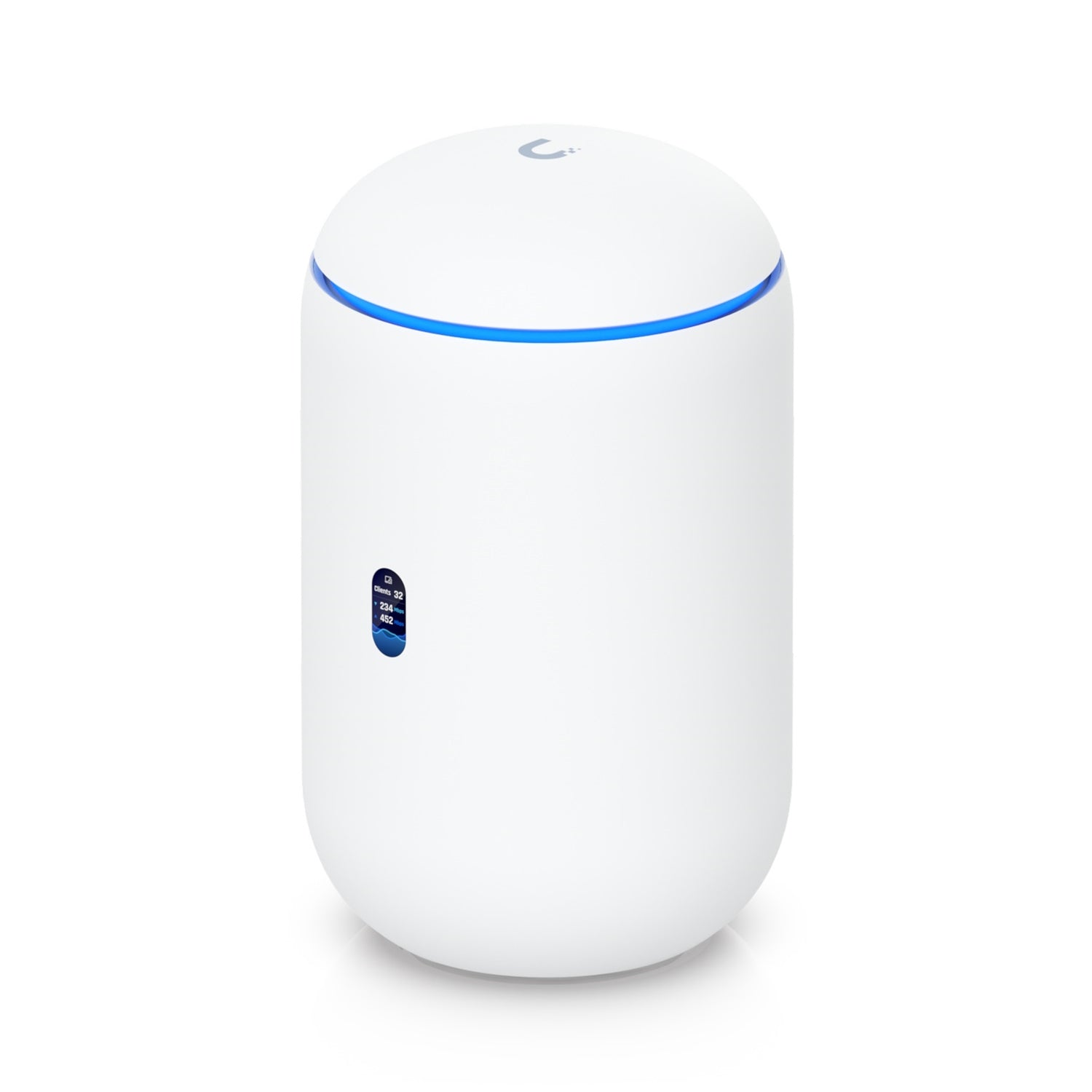

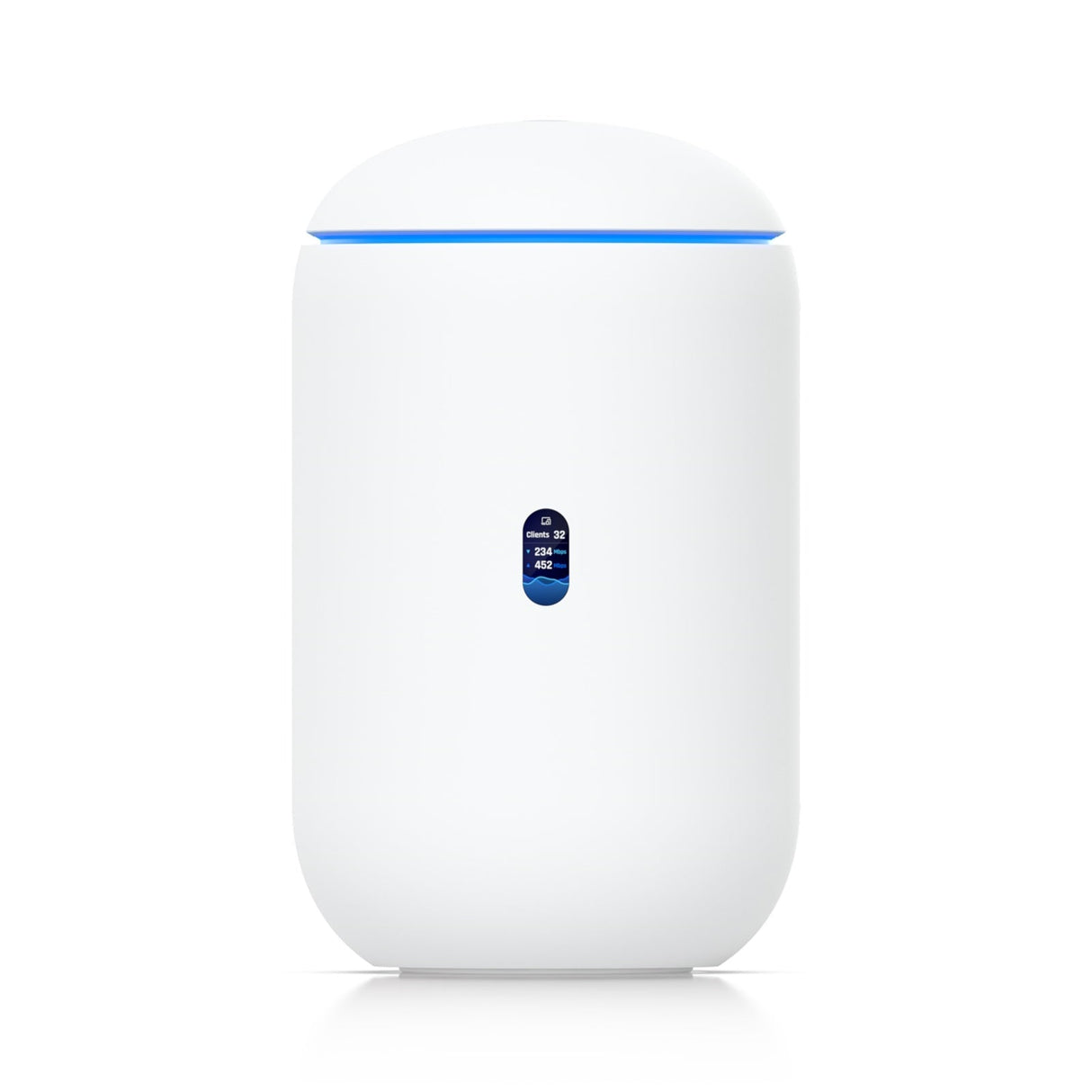

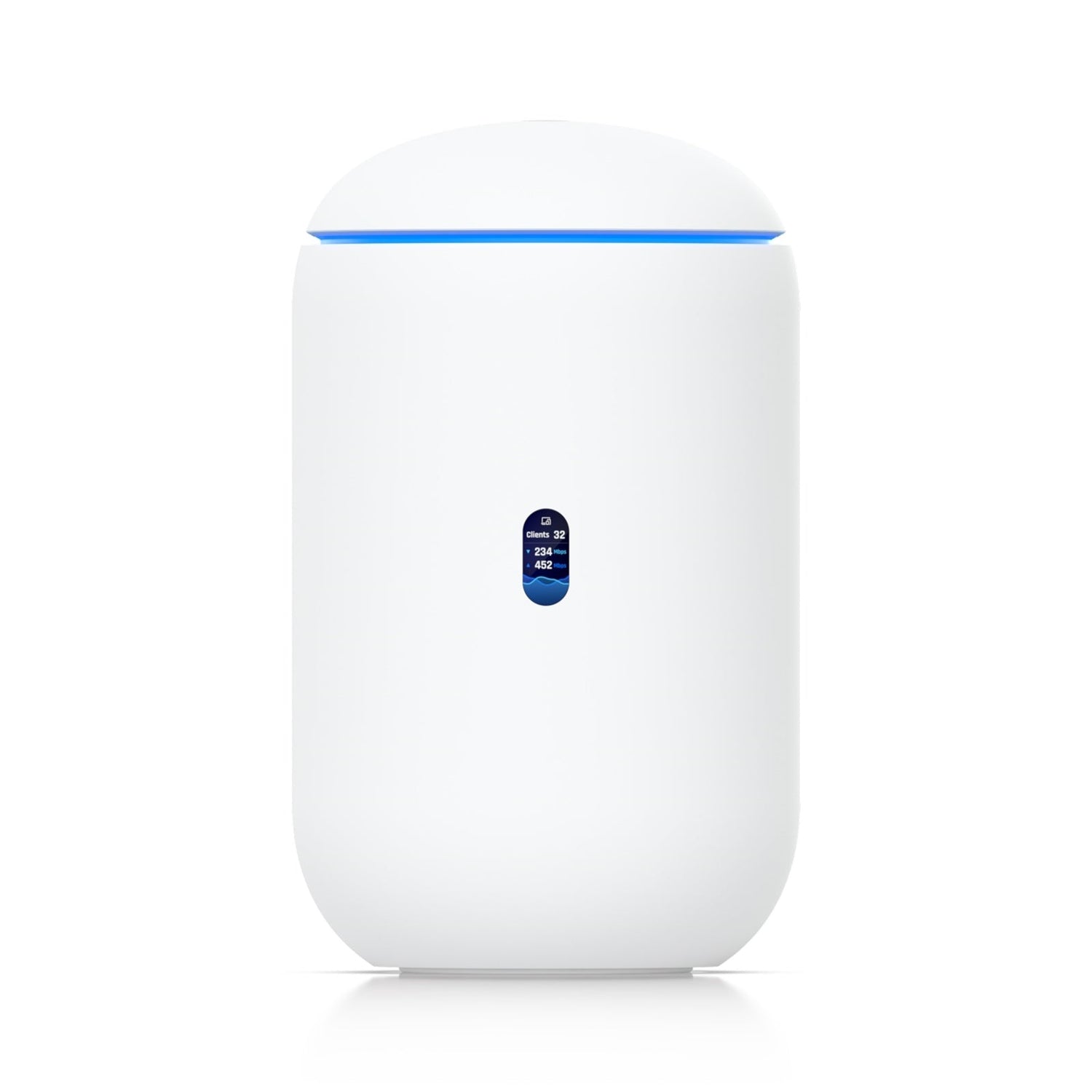

Ubiquiti UDR7 UniFi Dream Router 7 Combined 2.5 GBE Switch, NVR, Router, WiFi 7 Access Point and Gateway

Desktop 10G Cloud Gateway with WiFi 7 & UniFi Application Suite

Compact desktop 10G cloud gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.

Key Features

• Integrated WiFi 7 (802.11be) access point
• Desktop 10G cloud gateway with advanced security and routing
• Built-in PoE switch with 15.4W PoE budget
• Pre-installed 64 GB microSD for NVR storage
• Full UniFi Application Suite support:
• UniFi Network
• UniFi Protect
• UniFi Access
• UniFi Talk
• UniFi Connect
• Manages 30+ UniFi devices
• Supports up to:
• 300+ simultaneous users
• 8 cameras total:
  • (5) HD
  • (2) 2K
  • (1) 4K

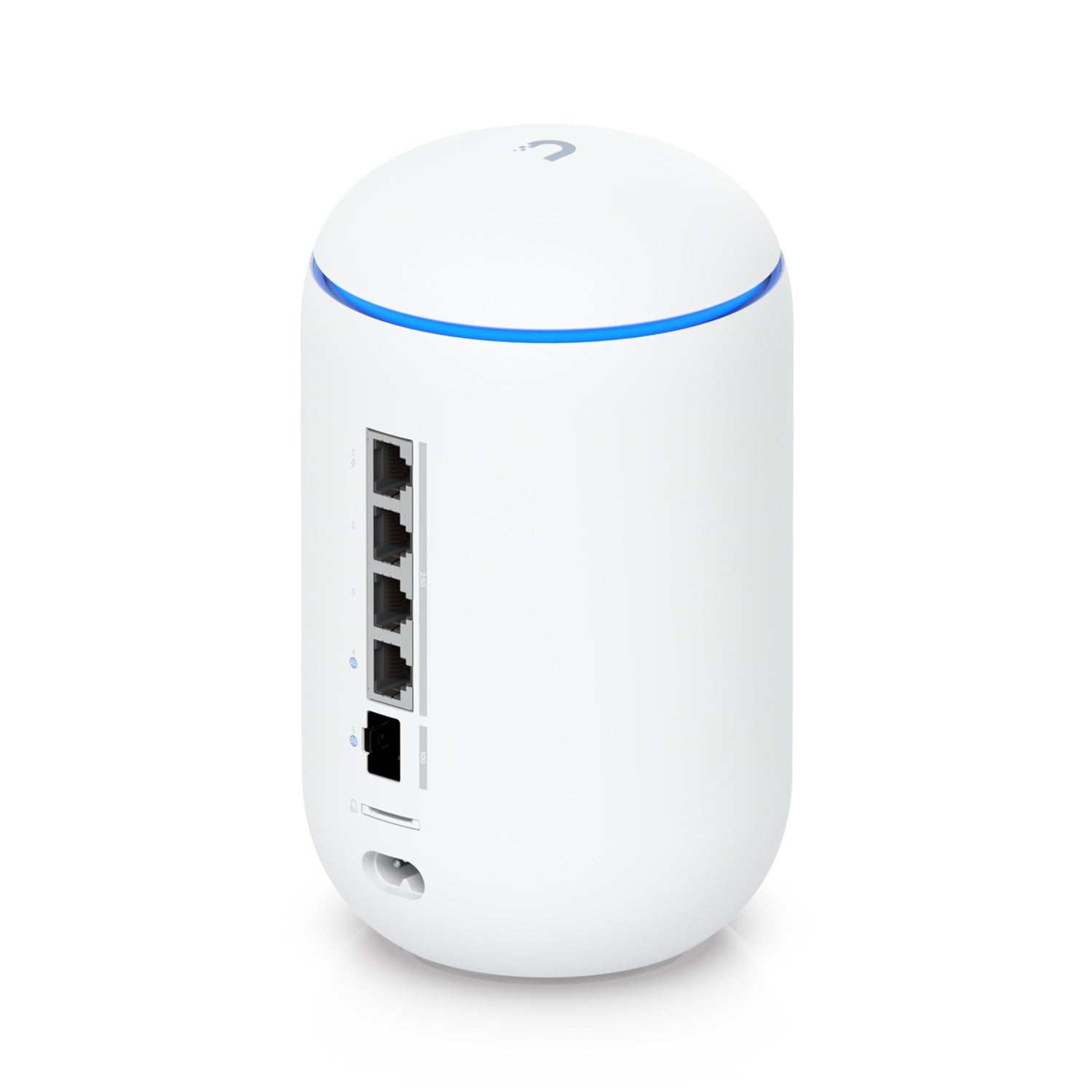

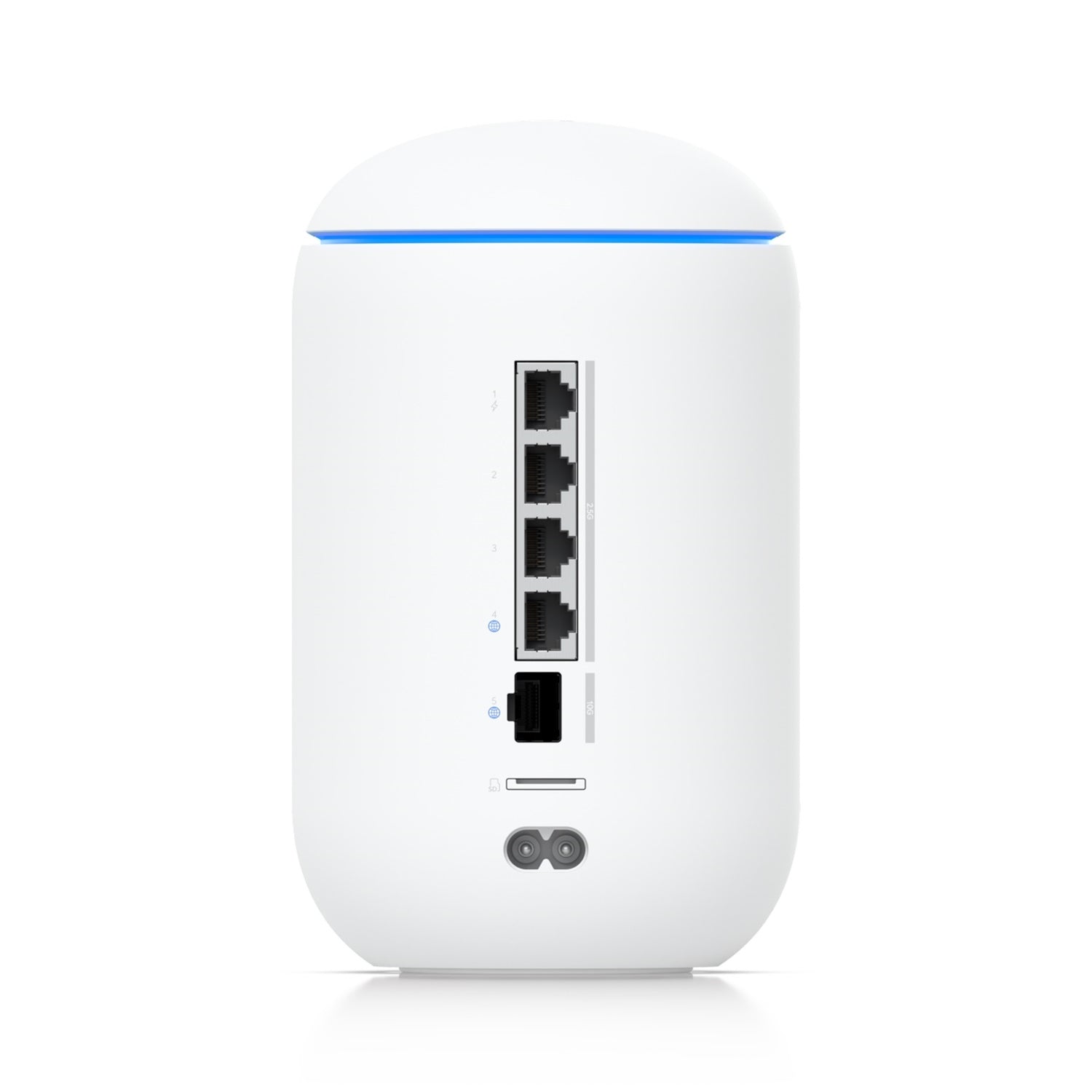

Performance & Networking

• Default WAN Ports
• (1) 10G SFP+
• (1) 2.5 GbE RJ45
• LAN Ports
• (3) 2.5 GbE RJ45 (including 1x PoE)
• IDS/IPS Throughput: 2.3 Gbps
• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• DPI and Traffic Identification: Yes
• Zone-Based Firewall with Advanced Filtering (Regions, Domains, Apps): Yes
• Content Filtering: Yes
• Intrusion Prevention (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 20,000+ with CyberSecure
• VLAN/Subnet-Based Traffic Segmentation: Yes
• License-Free SD-WAN: Yes
• Dynamic Routing (OSPF): Yes
• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT: SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT
• Integrated RADIUS Server: Yes
• RADIUS over TLS (RadSec): Yes
• MAC Address Table Size: 2000
• Policy-Based WAN and VPN Routing: Yes
• Customizable DHCP Server: Yes
• IPv6 ISP Support: Yes
• IGMP Proxy: Yes
• Additional Internet Failover with UniFi LTE Backup: Yes
• Internet Quality and Outage Reporting: Yes

VPN & SD-WAN

Site-to-Site VPN

• Site Magic
• IPsec
• OpenVPN
• WireGuard
• L2TP

VPN Server

• Identity Endpoint One-Click VPN
• Teleport Zero-Configuration VPN
• WireGuard
• OpenVPN
• L2TP

VPN Client

• OpenVPN
• WireGuard

Multi-WAN Load Balancing: Yes

WiFi 7 & Wireless Specifications

• WiFi Standard:
  802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Maximum Theoretical Throughput

• 6 GHz: 5.7 Gbps
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps

MIMO Configuration

• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

• 6 GHz: 6 dBi
• 5 GHz: 7 dBi
• 2.4 GHz: 5 dBi

Wireless Security

• WPA-PSK
• WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

• 4 per radio

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Max. TX Power

• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm

Storage & NVR

• NVR Storage: Pre-installed 64 GB microSD
• Expansion Slot: microSD card

Power & PoE

• PoE Budget: 15.4W
• Voltage Range PoE Mode: 44–57V
• Max. Power Consumption: 26W (excluding PoE output)
• Power Method: Universal AC input, 100–240VAC, 1.5A max, 50/60 Hz
• Supported Voltage Range: 100–240V AC

Hardware & Design

• Form Factor: Compact desktop
• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
• System Memory: 3 GB
• Weight: 1.1 kg (2.4 lb)
• Enclosure Material: Polycarbonate
• Dimensions:
• 110 x 184.1 mm
• 4.3 x 7.3"

Display & Management

• 0.96" status display (LCM)
• Management via Ethernet and Bluetooth
• System LEDs

Certifications

• CE
• FCC
• IC
