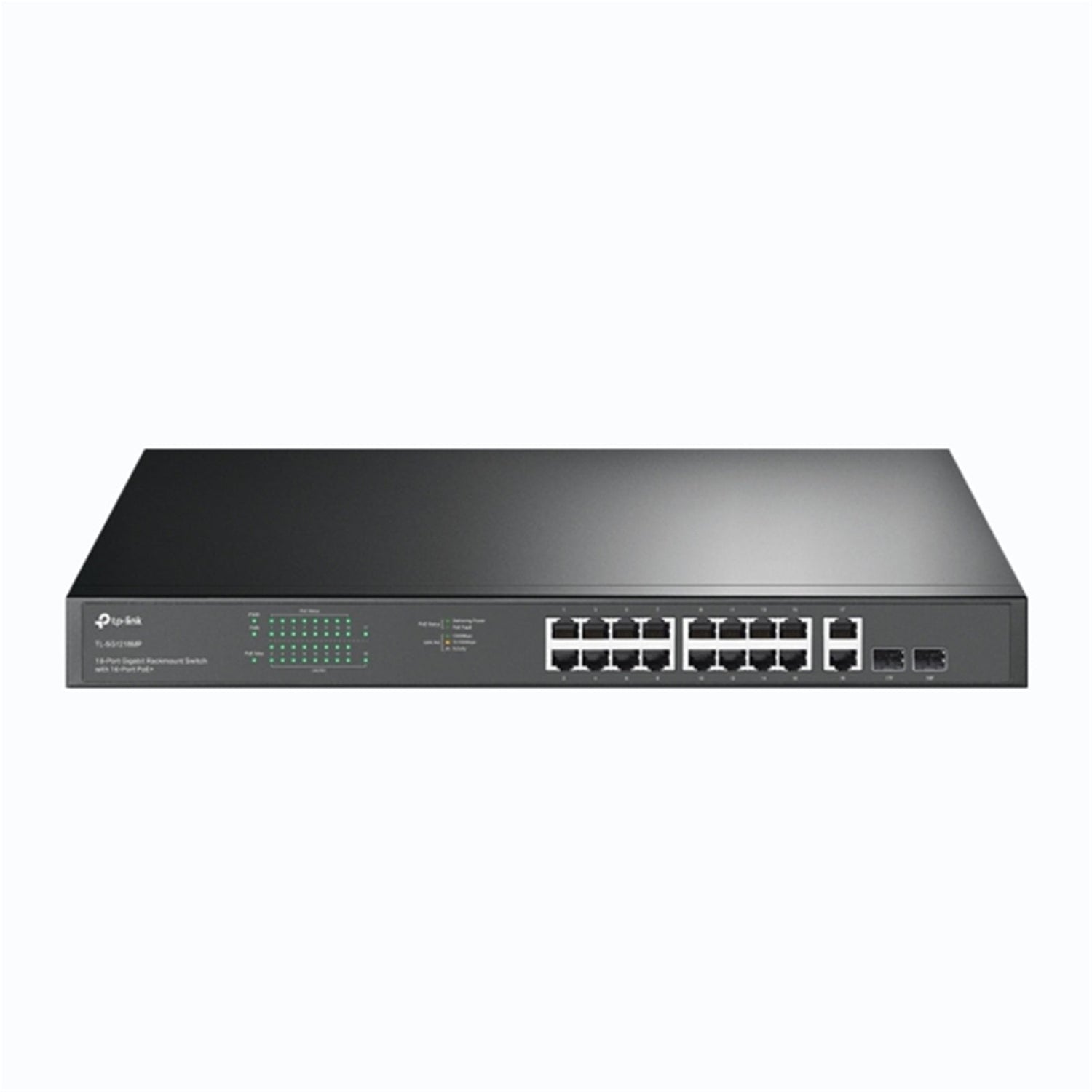

TP-Link TL-SG1218MP 18-Port Metal Gigabit Rackmount PoE Switch with 16 PoE+ (250W)
$270.00
18‑Port Gigabit Rackmount PoE+ Switch (TL-SG1218MP)
Overview
The TL-SG1218MP is an 18‑port Gigabit rackmount PoE+ switch designed for reliable, high‑performance networks. With 16 PoE+ ports, a 250 W PoE power budget, and versatile connectivity options, it is suitable for a wide variety of applications.
Key Features
- 18 Gigabit Ports
- 16 × Gigabit PoE+ RJ45 ports (802.3af/at compliant)
- 2 × Gigabit non‑PoE RJ45 ports
-
2 × combo Gigabit SFP slots
-
High PoE+ Power Budget
- Up to 30 W per PoE+ port
- 250 W total PoE power budget for 16 PoE+ ports
-
Supports IEEE 802.3af/at compliant PDs
-
Plug and Play
- No configuration required
-
Simple, hassle‑free installation
-
Optimized for Voice & Video
-
802.1p/DSCP QoS helps ensure smooth, latency‑sensitive traffic
-
Intelligent Power Management
- Automatically cuts power to lower‑priority ports when total PoE load exceeds 250 W
- Helps prevent overload and protect the device
-
Automatically detects required PoE power and protects non‑PoE equipment
-
Durable & Reliable Design
- Metal casing
- Professional heat dissipation
-
Wide operating temperature range: 0–50 °C
-
Flexible Deployment Scenarios
- Compatible with PoE devices such as IP cameras, access points, and IP phones
- Provides Gigabit connectivity for non‑PoE devices including PCs, printers, and IPTV
Specifications
Hardware Features
| Item | Details |
|---|---|
| Product | TL-SG1218MP |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.1q, 802.1p |
| Interfaces | 16 × PoE+ Gigabit RJ45 ports 2 × Gigabit non‑PoE RJ45 ports 2 × combo Gigabit SFP slots |
| Network Media – 10BASE‑T | UTP Cat 3, 4, 5 (max 100 m) EIA/TIA‑568 100 Ω STP (max 100 m) |
| Network Media – 100BASE‑TX | UTP Cat 5, 5e (max 100 m) EIA/TIA‑568 100 Ω STP (max 100 m) |
| Network Media – 1000BASE‑T | UTP Cat 5, 5e, 6 or above (max 100 m) EIA/TIA‑568 100 Ω STP (max 100 m) |
| Network Media – 1000BASE‑X | MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100–240 VAC, 50/60 Hz |
| PoE Standard | IEEE 802.3af/802.3at compliant |
| PoE Ports | Ports 1–16 |
| PoE Power Budget | 250 W |
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
| Mounting | Rack mountable |
| Max Power Consumption | 21.4 W (220/50 Hz, no PD connected) 286.64 W (220/50 Hz, with 250 W PD connected) |
| Max Heat Dissipation | 72.97 BTU/h (no PD connected) 977.44 BTU/h (with 250 W PD connected) |
Performance
| Item | Details |
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Advanced Functions | IEEE 802.3af/at PD compatibility 802.1p/DSCP QoS MAC address auto‑learning & auto‑aging IEEE 802.3x flow control (full‑duplex) and backpressure (half‑duplex) |
Other
| Item | Details |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1218MP Installation Guide Power Cord Rackmount Kit Rubber Feet |
| Operating Temp. | 0–50 °C (32–122 °F) |
| Storage Temp. | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH, non‑condensing |
| Storage Humidity | 5–90% RH, non‑condensing |
