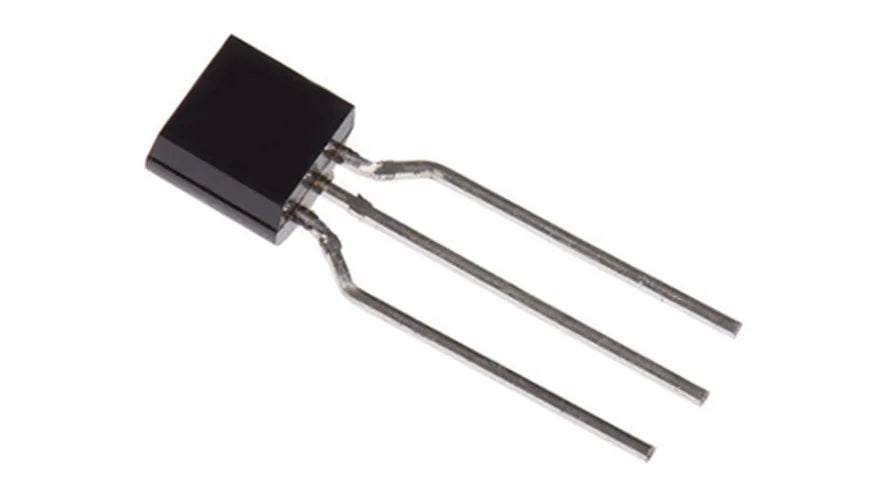

TL431AIZT Adjustable Shunt Voltage Reference TO-92 | 2.5–36V ±1%

$5.00

Quantity

产品变体

We Accept:

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Delivery and Shipping

Shipping & Processing

Order Processing

Same business-day for orders placed before 3 PM (GMT), except in rare cases when it may take 1 additional business day.
Larger or specialist items require up to 3 business days to process.

Delivery Options

Royal Mail 48

Free on orders over £20
£2.99 on orders under £20
Delivery in 2–3 business days

Tracked 24 (Next-Day) — £4.99
Standard (Large & Specialist Items)
- Free on orders over £20
- £6.99 on orders under £20
- Delivery in 2–14 business days (typically around 7 days)
- Processing may take up to 3 business days
International

We ship worldwide. Delivery options and estimated timeframes for your country are available at checkout.
Customs, duties, and import taxes are your responsibility.

You’ll receive tracking details as soon as your order ships [track your order here]. For full details, please see our [Shipping Policy].

TL431AIZT Adjustable Shunt Voltage Reference TO-92 | 2.5–36V ±1%

$5.00

TL431AIZT Adjustable Shunt Voltage Reference (TO-92)

The TL431AIZT from STMicroelectronics is a precision adjustable shunt voltage reference designed for reliable voltage regulation and monitoring applications. Offering a wide adjustable output range and tight initial accuracy, it provides stable and predictable performance across a broad operating temperature range.

Key Features & Benefits

Adjustable reference voltage from 2.5 V to 36 V for flexible circuit design
High initial accuracy (±1.0%) for precise voltage control
Shunt topology suitable for regulation, feedback, and protection circuits
Wide operating temperature range from -40 °C to +105 °C
Compact TO-92 through-hole package for easy PCB mounting

Technical Specifications

Parameter	Specification
Brand	STMicroelectronics
Reference Type	Adjustable
Nominal Voltage	2.5 – 36 V
Minimum Output Voltage	2.5 V
Maximum Output Voltage	36 V
Initial Accuracy	±1.0 %
Topology	Shunt
Maximum Output Current	100 mA
Maximum Input Voltage	37 V
Package Type	TO-92
Mounting Type	Through Hole
Pin Count	3
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+105 °C
Dimensions (L × W × H)	4.7 × 3.7 × 4.4 mm
Length	4.7 mm
Width	3.7 mm
Height	4.4 mm
