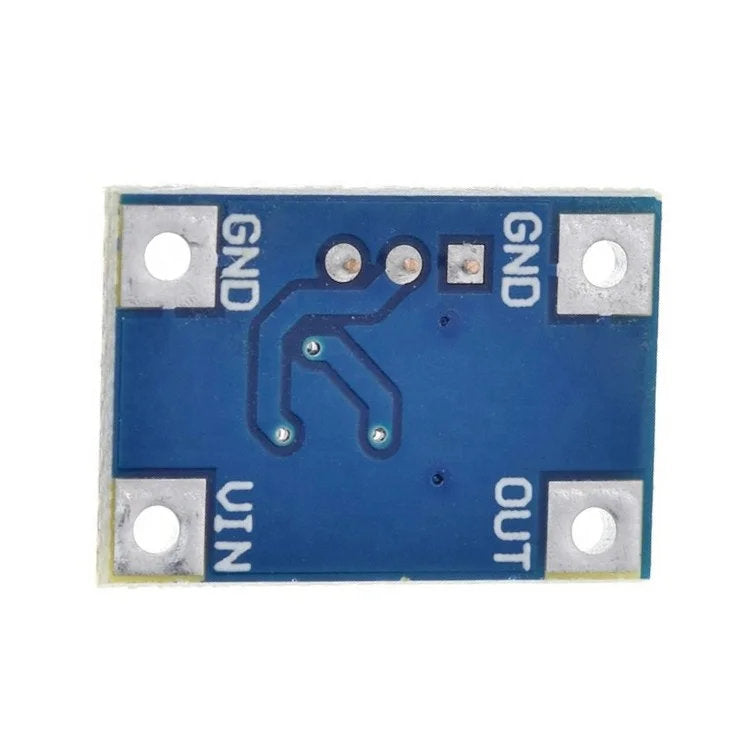

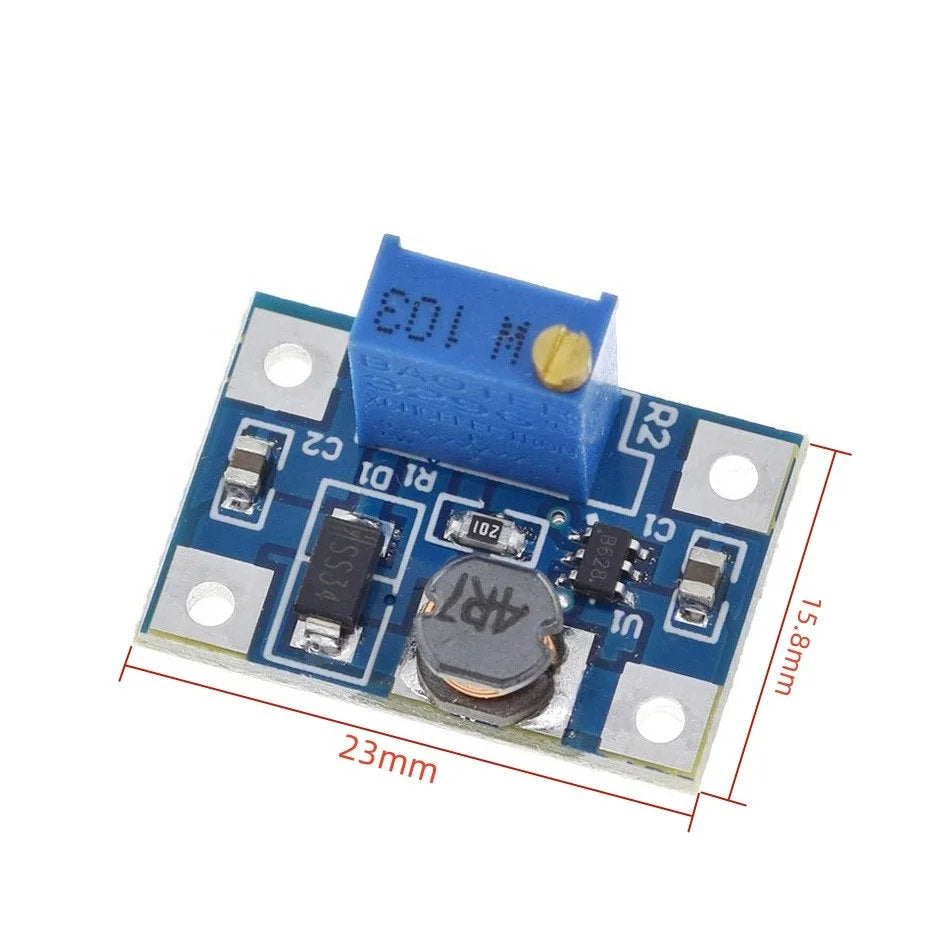

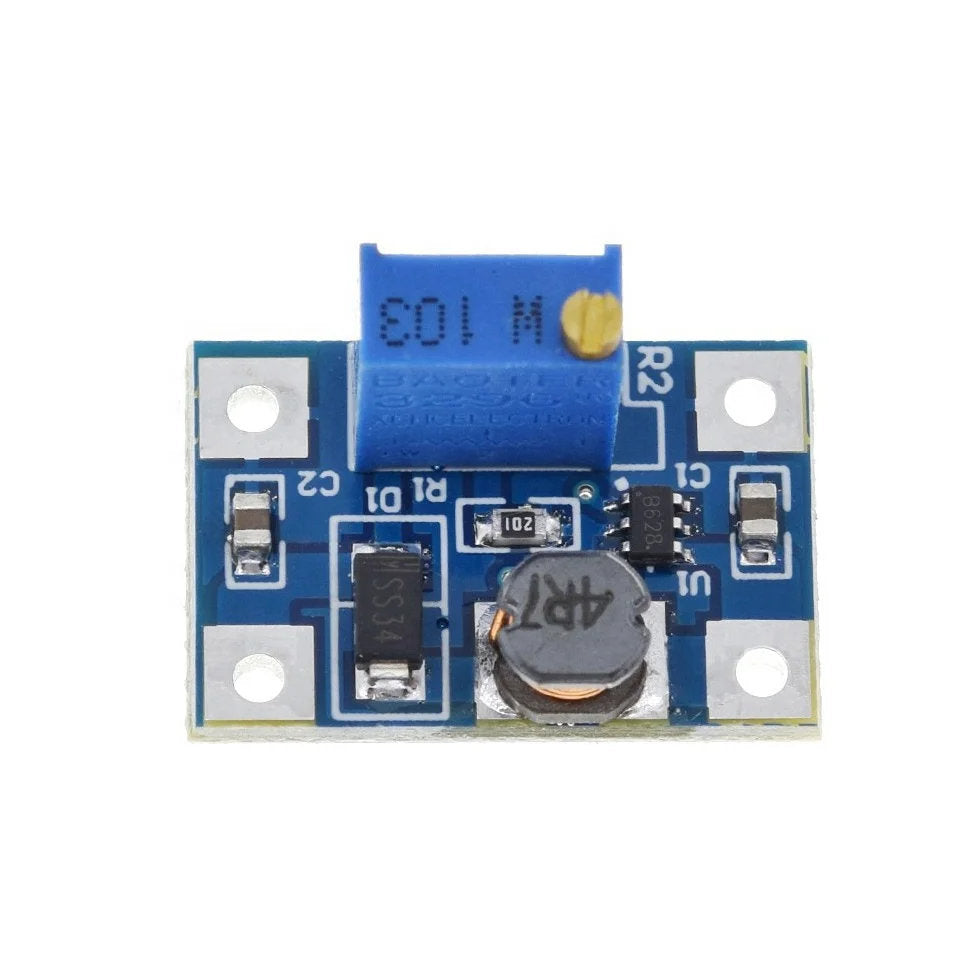

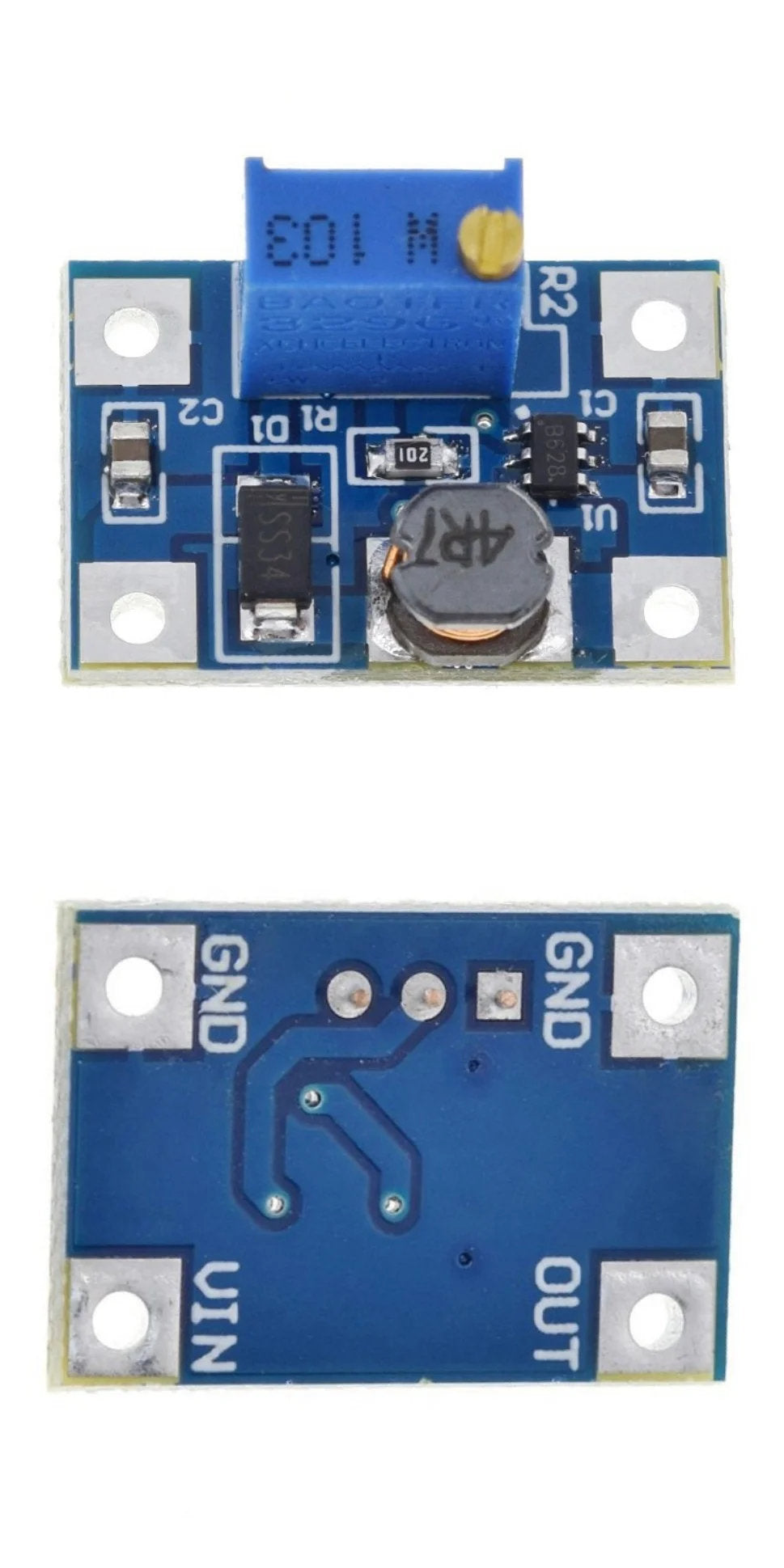

SX1308 DC-DC Boost Converter Module

The SX1308 booster module features the SX1308 chip in a compact design with high conversion efficiency. It provides adjustable output power with a maximum output voltage of up to 28V and integrates a low RDS(on) MOSFET for stable, high-current performance.

Designed for a wide range of power applications, this module is commonly used in 3G network products, digital devices, mobile power supplies, battery-powered systems, and electronic equipment.

Key Features

Compact module size with high efficiency
Adjustable output voltage via onboard 10K potentiometer
Integrated low RDS(on) MOSFET (100mΩ)
Supports large current output up to 2A
Built-in short-circuit protection
Overheating protection
High-frequency operation at 1.2MHz
Efficiency up to 95%

Technical Specifications

Parameter	Specification
Input Voltage	DC 2–24V
Output Voltage	DC 2–28V (adjustable)
Maximum Output Current	2A
Switching Frequency	1.2MHz
Conversion Efficiency	Up to 95%

This SX1308 boost converter module offers reliable voltage boosting performance in a small, efficient form factor for a variety of power supply applications.
