GIGABYTE UD1000GM PG5 1000W PSU, 120mm Smart Hydraulic Bearing Fan, 80 PLUS Gold, Fully Modular, UK Plug, High-Quality Japanese Capacitors, Support for PCIe Gen 5.0 Graphics Cards with High Quality Native 16-pin Cable
$203.00

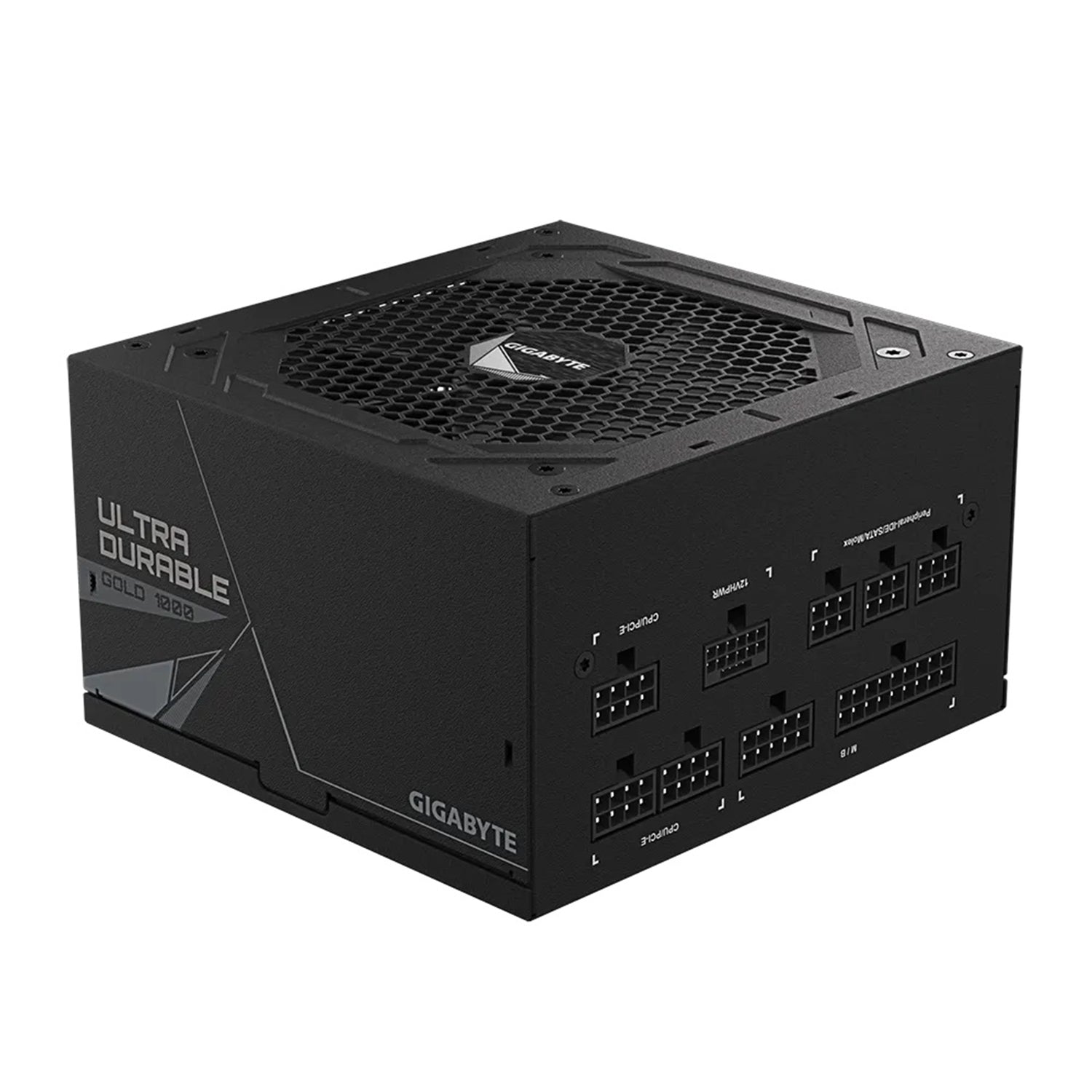

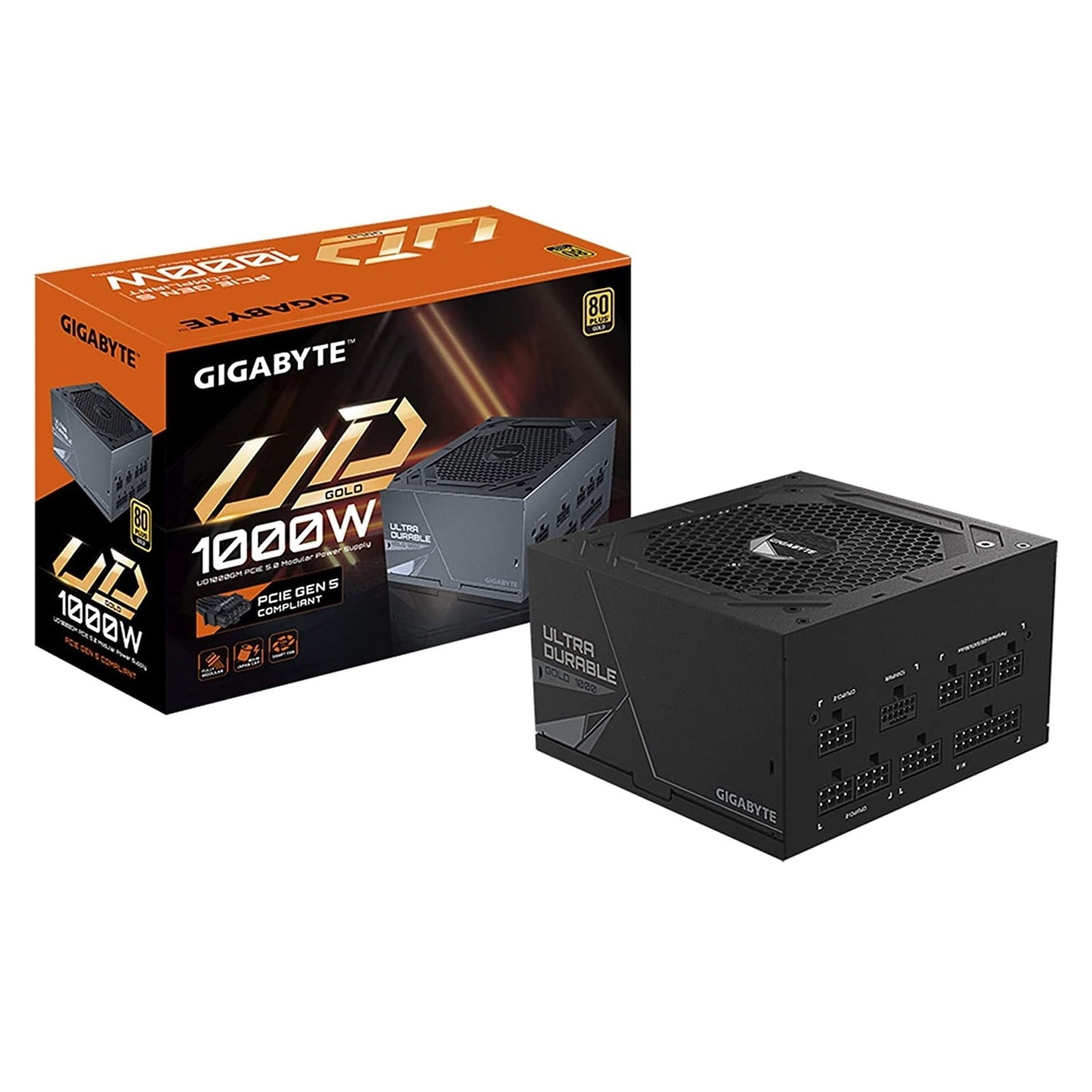

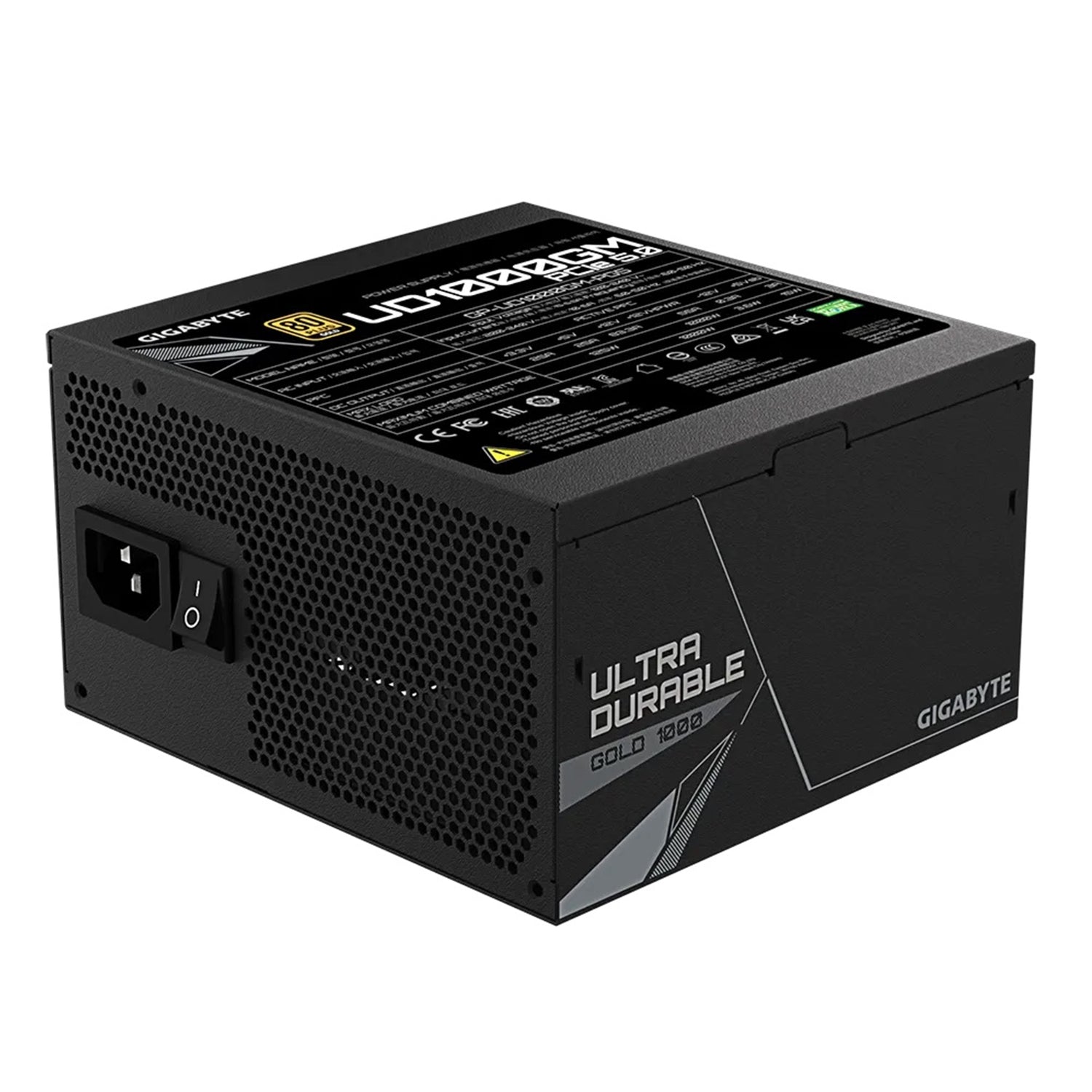

Gigabyte UD1000GM PG5 Power Supply
The Gigabyte UD1000GM PG5 is a high-performance 1000W power supply designed for modern gaming PCs and advanced systems, combining reliability, efficiency, and flexible connectivity.
Key Features
- Ultra Durable Design
- Main Japanese capacitors
- Enhanced thermal solution

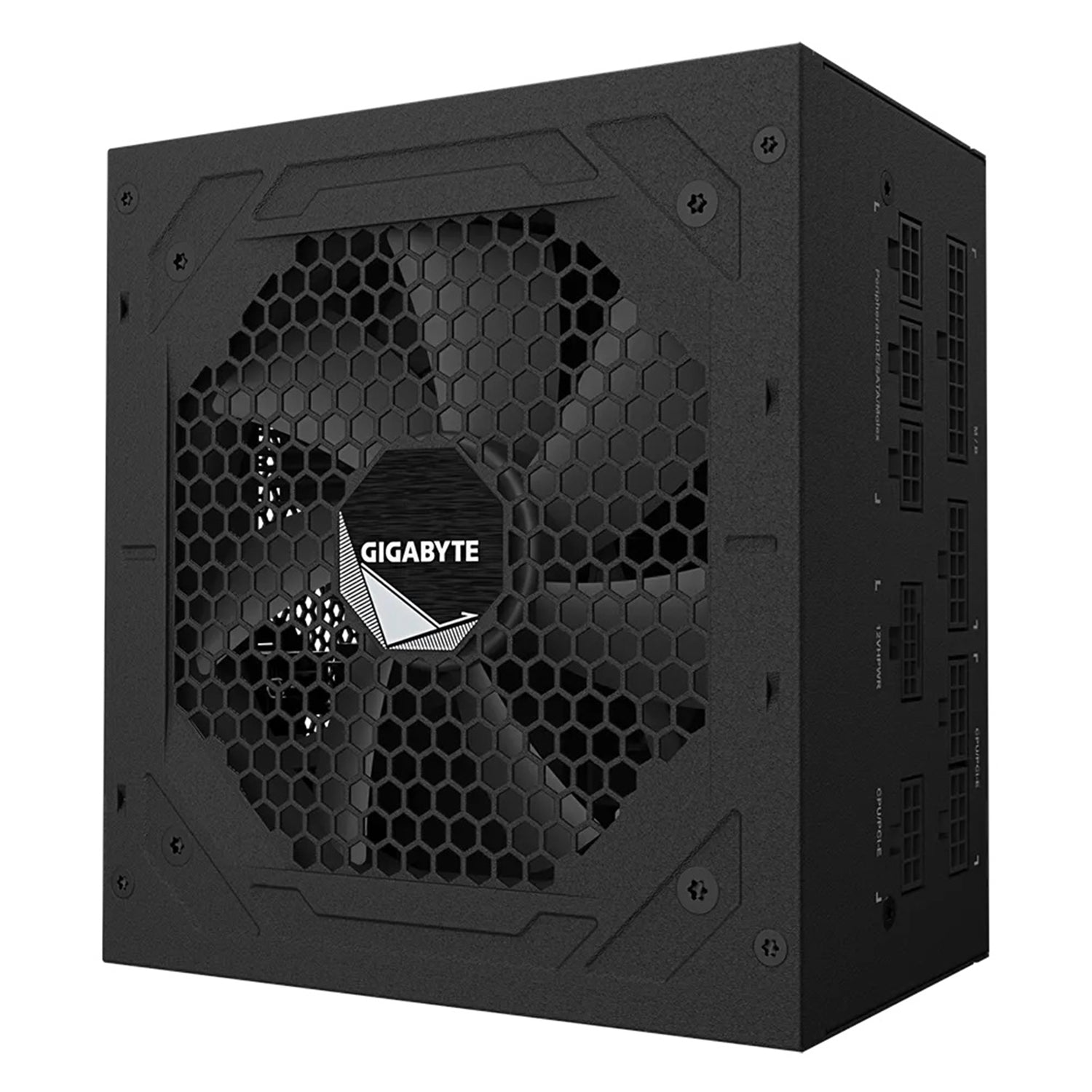

- 120mm smart hydraulic bearing (HYB) fan
-
Multiple protection features: OVP / OPP / SCP / UVP / OCP / OTP
-
Next-Gen GPU Support
- Supports PCIe Gen 5.0 graphics cards
-
High-quality native 16-pin PCIe cable supporting up to 600W output
-
Efficient & Reliable Power
- 80 PLUS Gold certified
- Up to 90% efficiency at typical load
-
MTBF > 100,000 hours
-
User-Friendly Design
- Fully modular cable design
- Compact form factor
-
Flat, all-black cables for a clean build
-
Long-Term Assurance
- 10-year warranty

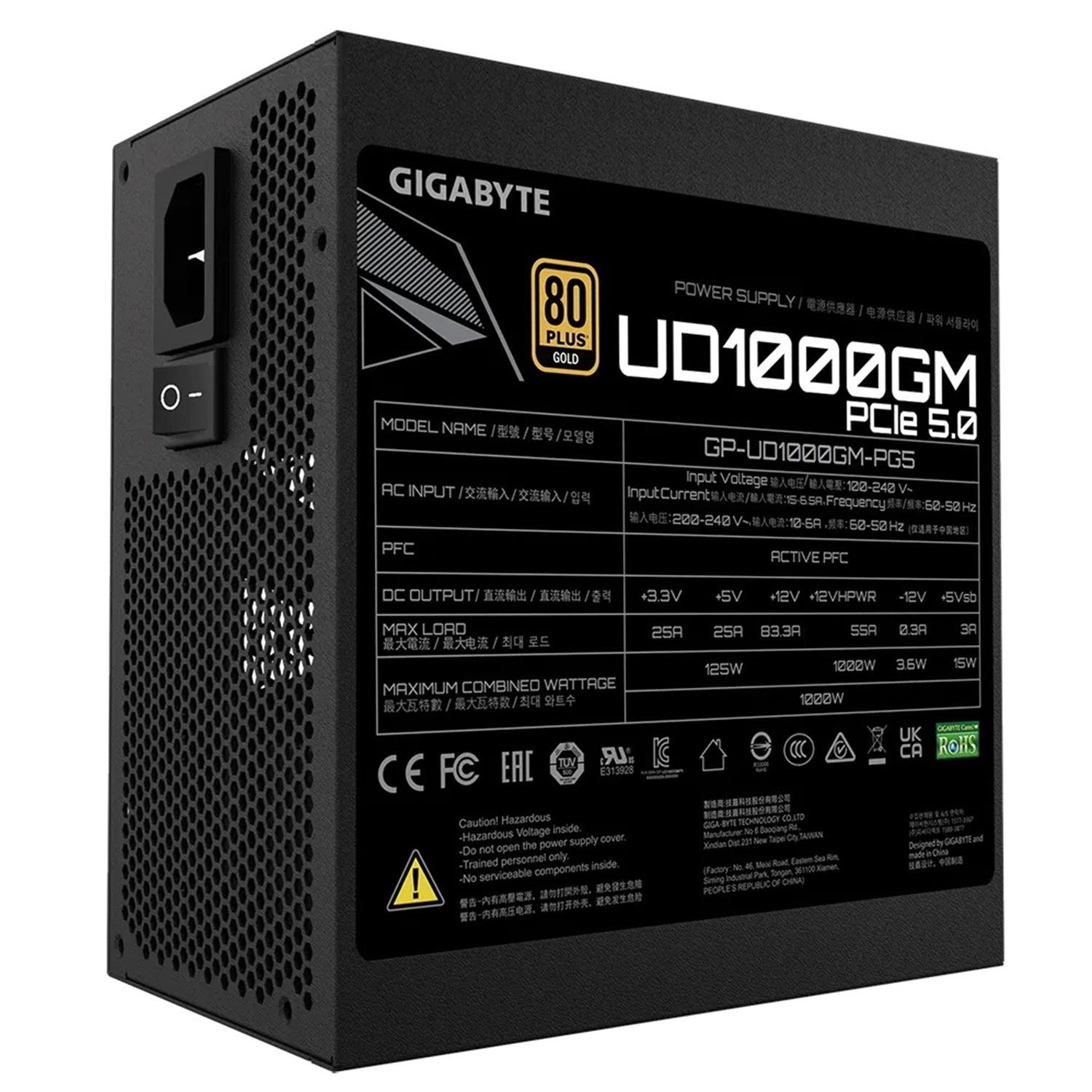

Specifications
| Category | Details |
|---|---|
| Model | GP-UD1000GM PG5 |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100–240 Vac (full range) |
| Input Current | 15–6.5 A |
| Input Frequency | 60–50 Hz |
| Wattage | 1000 W |

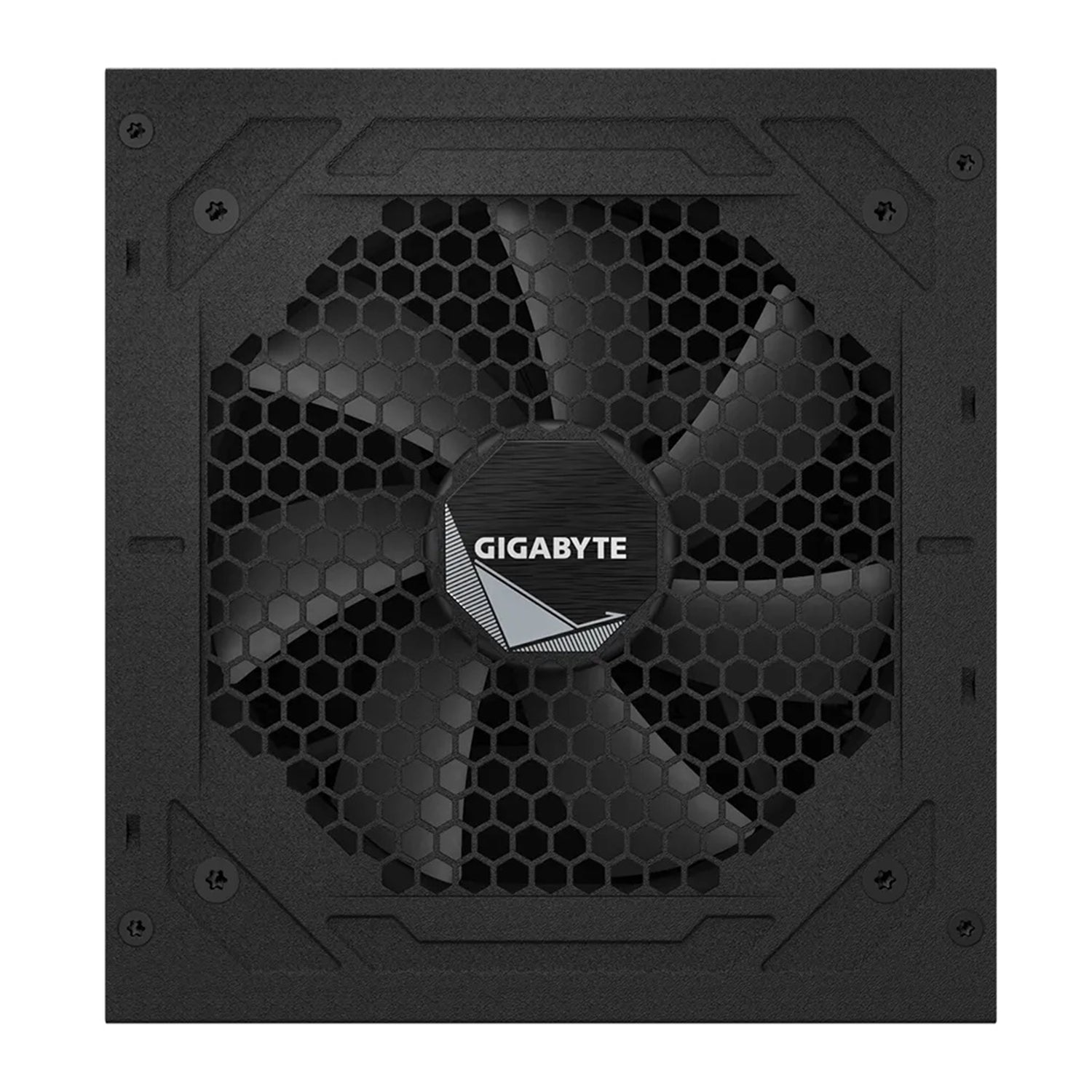

| Fan Type | 120mm Hydraulic Bearing (HYB) fan |
| 80 PLUS Certification | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100–150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, all black |
| Product Dimensions | 150 x 140 x 86 mm |
Connectors
- 1 × 20+4 pin motherboard
- 2 × 4+4 pin CPU
- 1 × 16-pin PCIe
- 4 × 6+2 pin PCIe
- 8 × SATA
- 3 × Peripheral
- 1 × Floppy
