Gigabyte NVIDIA GeForce RTX 5060 Ti Windforce Max OC 16GB GDDR7 Graphics Card, 4608 CUDA Cores, 2587 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Ports

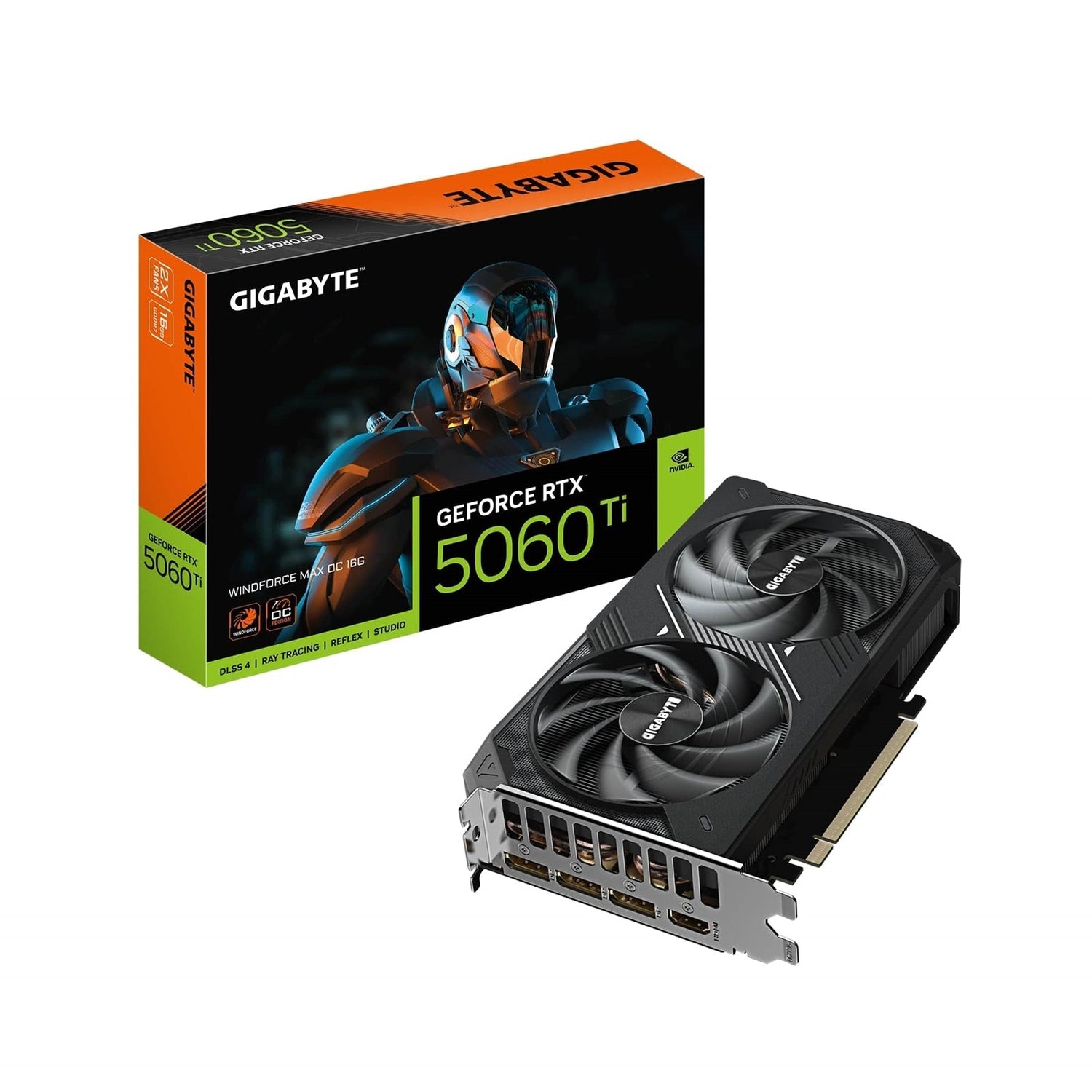

Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 16G

The Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 16G is designed for gamers and creators who demand advanced cooling, enhanced durability, and next-generation performance powered by NVIDIA Blackwell architecture and DLSS 4.

Key Features

• Powered by NVIDIA Blackwell architecture and DLSS 4
• GeForce RTX 5060 Ti graphics processing
• 16 GB GDDR7 memory with 128-bit interface
• WINDFORCE cooling system
• Hawk fan design
• Server-grade thermal conductive gel
• Reinforced structure
• Core Clock: 2587 MHz (Reference card: 2572 MHz)

Next-Generation Performance

• The Ultimate Platform for Gamers and Creators
• Fifth-Gen Tensor Cores
• Max AI performance with FP4 and DLSS 4
• New Streaming Multiprocessors
• Optimized for neural shaders
• Fourth-Gen Ray Tracing Cores
• Built for mega geometry

WINDFORCE Cooling System

The WINDFORCE cooling system delivers exceptional thermal performance using multiple advanced cooling technologies:

• Server-grade thermal conductive gel
• Hawk fans with alternate spinning
• Composite copper heat pipes
• Copper plate
• 3D active fans
• Screen cooling design

Hawk Fan

The Hawk Fan utilizes a unique blade design inspired by eagle wing aerodynamics to enhance airflow and reduce noise:

• Up to 53.6% increase in air pressure
• Up to 12.5% increase in air volume
• Reduced air resistance and noise without compromising acoustics

Graphene Nano Lubricant

• Extends the life of sleeve bearing fans by 2.1 times, approaching double ball bearing lifespan
• Quieter operation

Alternate Spinning

• Reduces turbulence between adjacent fans
• Increases overall airflow pressure

3D Active Fan

• Semi-passive cooling design
• Fans remain off when the GPU is under low load or running low power games

Server-Grade Thermal Conductive Gel

• Applied to critical components such as VRAM and MOSFETs
• Highly deformable, non-fluid gel ensures optimal contact on uneven surfaces
• Resists deformation from transport or long-term use, unlike traditional thermal pads

Copper Plate & Composite Copper Heat Pipe

• Copper plate makes direct contact with the GPU
• Composite copper heat pipes rapidly transfer heat from GPU and VRAM to the heatsink

Screen Cooling

• Extended heatsink design allows air to pass through
• Improves overall heat dissipation

Superior Craftsmanship

Ultra Durable Design

• Ultra Cooling
• Lower RDS(on) MOSFETs reduce switching resistance for faster current charging and discharging at extremely low temperatures
• Low Power Loss
• Metal chokes retain energy longer than common iron-core chokes at high frequency
• Helps reduce core energy loss and EMI interference
• Longer Life
• Lower ESR solid capacitors provide better electronic conductivity
• Contributes to excellent system performance and longer lifespan

Friendly PCB Design

• Fully automated production for high-quality circuit boards
• Eliminates sharp solder protrusions common on conventional PCBs
• Helps prevent accidental hand injury or damage to components during building

Power Through the Game

GIGABYTE offers power supply solutions designed to pair with this graphics card:

• Compatible with AORUS series and UD series power supplies from GIGABYTE

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software platform for supported GIGABYTE products:

• Intuitive interface
• Real-time adjustments for:
• Clock speed
• Voltage
• Fan mode
• Power target

Specifications
