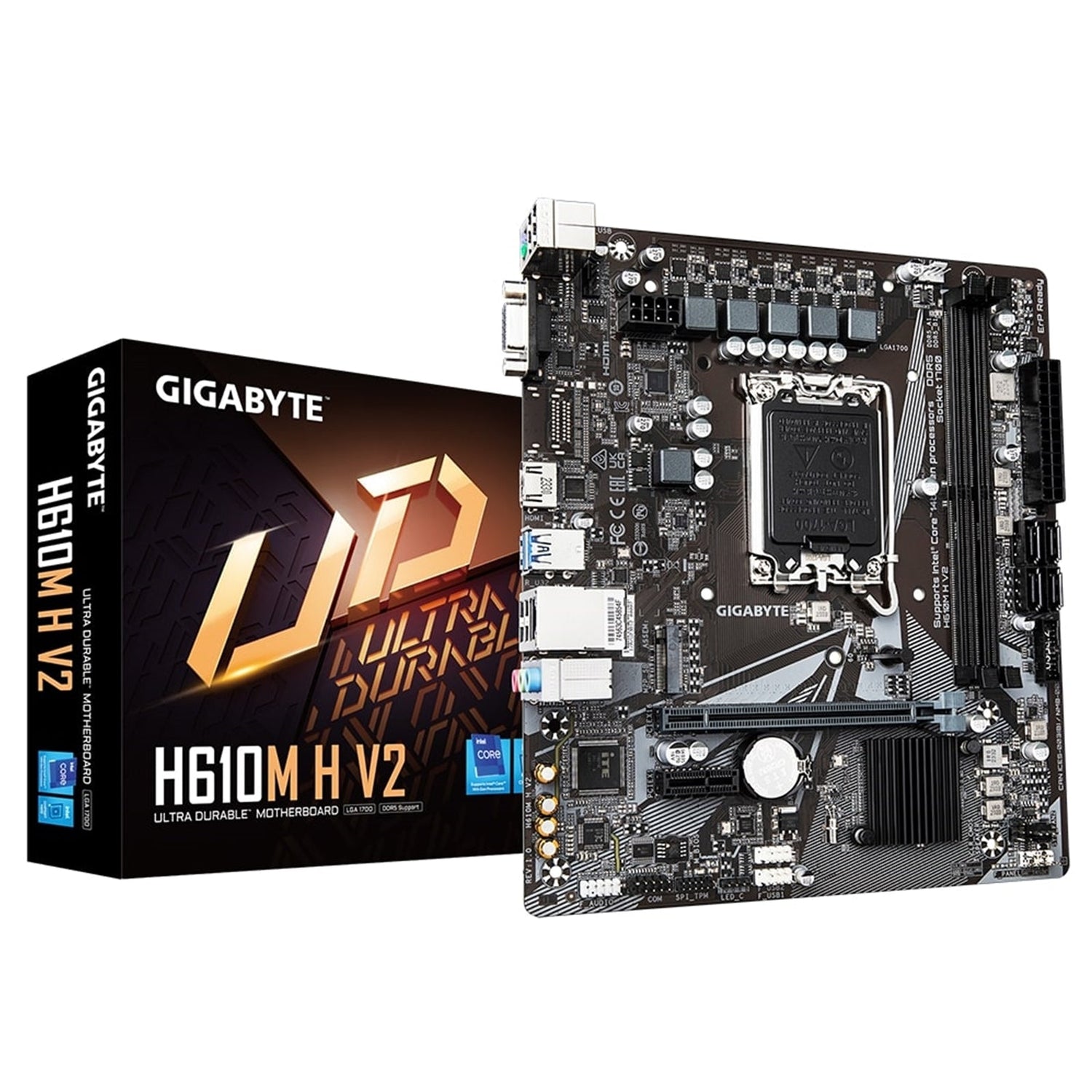

Gigabyte H610M H V2 (Rev. 1.0) Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

GIGABYTE H610M D3W (Rev. 1.1) Micro ATX Motherboard

The GIGABYTE H610M D3W (Rev. 1.1) is designed for Intel® 14th, 13th, and 12th Gen processors, delivering a solid foundation for modern desktop systems with DDR5 memory support, NVMe M.2 storage, and comprehensive connectivity.

Key Features

• CPU Support

• Supports Intel® Core™ 14th / 13th / 12th Gen processors

• Memory

• Dual channel DDR5
• 2 x DIMM slots

• Non-ECC unbuffered memory support

• Power Design

• 4+1+1 Hybrid Digital VRM Design

• Networking

• GbE LAN with bandwidth management

• Storage

• NVMe PCIe 3.0 x4 M.2 slot

• Audio

• High quality audio capacitors

• Audio Noise Guard

• Cooling & Control

• Smart Fan 6 with multiple temperature sensors

• Hybrid fan headers with FAN STOP

• Software & Reliability

• GIGABYTE APP Center for simple and easy use
• Anti-sulfur resistors design

Specifications

CPU

* Refer to the "CPU Support List" for more information.

Chipset

Memory

The CPU and memory configuration may affect supported memory types, speeds, and number of modules. Refer to the "Memory Support List" on GIGABYTE's website for details.

BIOS

Graphics

Integrated Graphics Processor – Intel® HD Graphics support*:

• 1 x D-Sub port
• Max resolution: 1920 x 1200 @ 60 Hz
• 1 x HDMI port
• Max resolution: 4096 x 2160 @ 60 Hz
• Supports HDMI 2.1 and HDCP 2.3
• Supports native HDMI 2.1 TMDS compatible ports

* Graphics specifications may vary depending on the CPU.

Audio

* Audio jack functionality can be changed in the audio software. To configure 7.1-channel audio, use the audio software settings.

LAN

Wireless LAN: N/A

Expansion Slots

• CPU:
• 1 x PCI Express x16 slot, PCIe 4.0, running at x16
• Chipset:
• 1 x PCI Express x1 slot, PCIe 3.0, running at x1

Storage

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280/2260, PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors

RAID: N/A

USB

• Chipset:
• 4 x USB 3.2 Gen 1 ports
  • 2 x rear panel
  • 2 x via internal header

• 4 x USB 2.0/1.1 ports on rear panel

• Chipset + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports via internal headers

Internal Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Rear Panel I/O

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

Form Factor

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit
