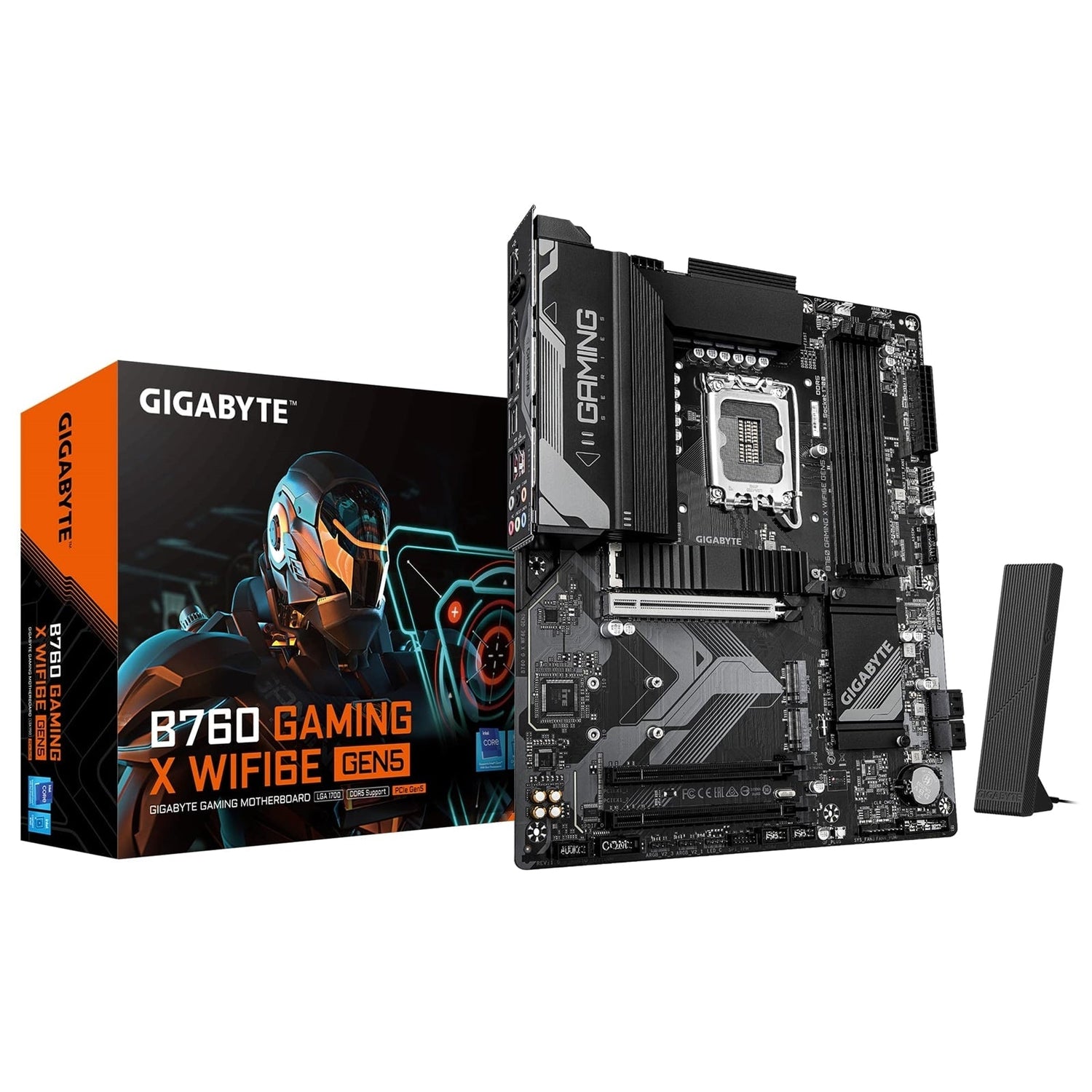

Gigabyte B760 GAMING X WIFI6E GEN5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x Display Port

Name: Gigabyte B760 GAMING X WIFI6E GEN5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x Display Port
Brand: GIGABYTE
Price: 211.00 GBP
Availability: OutOfStock

$211.00

Be the first to know when it's back in stock!

We Accept:

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Delivery and Shipping

Shipping & Processing

Order Processing

Same business-day for orders placed before 3 PM (GMT), except in rare cases when it may take 1 additional business day.
Larger or specialist items require up to 3 business days to process.

Delivery Options

Royal Mail 48

Free on orders over £20
£2.99 on orders under £20
Delivery in 2–3 business days

Tracked 24 (Next-Day) — £4.99
Standard (Large & Specialist Items)
- Free on orders over £20
- £6.99 on orders under £20
- Delivery in 2–14 business days (typically around 7 days)
- Processing may take up to 3 business days
International

We ship worldwide. Delivery options and estimated timeframes for your country are available at checkout.
Customs, duties, and import taxes are your responsibility.

You’ll receive tracking details as soon as your order ships [track your order here]. For full details, please see our [Shipping Policy].

Gigabyte B760 GAMING X WIFI6E GEN5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x Display Port

$211.00

GIGABYTE B760 GAMING X WIFI6E GEN5 ATX Motherboard

The GIGABYTE B760 GAMING X WIFI6E GEN5 motherboard delivers PCIe Gen5 performance, efficient cooling, and versatile connectivity for Intel 14th, 13th, and 12th Gen processors. Designed for durability, DIY-friendly assembly, and customizable aesthetics, it provides a powerful and reliable foundation for modern gaming and high-performance PCs.

PCIe Gen5 Performance

Express to PCIe 5.0 Performance
Enjoy boosted performance of PCIe Gen5 on the existing platform.
Double Bandwidth vs PCIe 4.0
PCIe 5.0 increases data transfer rate from 16 GT/s to 32 GT/s per lane, delivering significantly higher bandwidth for demanding components.

Advanced Thermal Design

Fully Covered Thermal Design
High coverage MOSFET and integrated molding heatsinks enhance thermal efficiency.
Improved Airflow & Heat Exchange
Optimized layout for better cooling performance to help maintain stability under load.

Built for DIY and Durability

Hassle-free Assembly
Engineered to simplify the building process for an ultimate DIY experience.
Born from Ultra Durable Technology
Designed for longevity, reliability, and consistent performance.
Optimal Power Delivery
Supports maximum Turbo Boost and overclocking performance.

Customization & Software

Personalized Aesthetics
Customizable lighting effects to match your unique style.
Intuitive Control
Bundled GIGABYTE software helps manage motherboard settings and lighting with ease.

Key Features

PCIe Gen5 Performance: Perfect Sync to Win
CPU Support: Intel Core 14th / 13th / 12th Generation processors
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Wi-Fi EZ-Plug: Quick and easy Wi-Fi antenna installation
Wi-Fi Compass: Auto-detects best antenna position for strongest Wi-Fi signal
EZ-Latch: PCIe 5.0 x16 slot with quick-release design
PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
Power Design: Hybrid 8+1+1 phases VRM solution
Memory: Dual Channel DDR5, 4 x DIMM with XMP support
Networking: 2.5GbE LAN & Wi-Fi 6E (802.11ax)
Connectivity: Front USB-C 10 Gb/s, DisplayPort, HDMI
Storage: 3 x PCIe 4.0 x4 M.2 connectors
Cooling Control: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card

Specifications

CPU

Item	Details
Socket	LGA1700
Supported CPUs	14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors
Notes	CPU support list available on GIGABYTE’s website
L3 Cache	Varies with CPU

Chipset

Item	Details
Chipset	Intel B760 Express Chipset

Memory

Item	Details
Supported CPUs (Memory)	14th & 13th Gen Intel Core i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen Core i5/i3 & 12th Gen Core/Pentium Gold/Celeron: DDR5 4800/4400 MT/s
Slots	4 x DDR5 DIMM sockets
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Non-ECC Support	Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP	Support for Extreme Memory Profile (XMP) memory modules
Notes	Supported types, speeds, and module count depend on CPU and configuration; see GIGABYTE’s Memory Support List

Onboard Graphics

Item	Details
Integrated Graphics	Intel HD Graphics (CPU-dependent)
DisplayPort	1 x DP, max 4096x2304 @ 60 Hz
HDMI	1 x HDMI, max 4096x2160 @ 60 Hz
Notes	Graphics specifications may vary depending on CPU support

Audio

Item	Details
Codec	Realtek Audio CODEC
Audio Channels	High Definition Audio; 2/4/5.1/7.1-channel
Digital Output	Support for S/PDIF Out

LAN

Item	Details
Controller	Realtek 2.5GbE LAN chip
Speeds	2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

Item	Details
Module	Intel Wi-Fi 6E AX210
Wi-Fi Standards	a/b/g/n/ac/ax
Frequency Bands	2.4 / 5 / 6 GHz
Bluetooth	Bluetooth 5.3
Standard	Supports 11ax 160 MHz wireless
Notes	Actual data rate may vary by environment and equipment

Expansion Slots

Source	Slots	Details
CPU	1 x PCI Express x16	PCIe 5.0, runs at x16 (PCIEX16). Supports a graphics card or an NVMe SSD only. If only one graphics card is installed, use PCIEX16.
Chipset	2 x PCI Express x16	PCIe 3.0, running at x1 (PCIEX1_1, PCIEX1_2)

Storage Interface

Source	Connectors	Details
CPU	1 x M.2	Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support (M2A_CPU)
Chipset	2 x M.2	Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support (M2P_SB, M2M_SB)
Chipset	4 x SATA	SATA 6 Gb/s connectors
RAID	RAID 0, 1, 5, 10 support for SATA storage devices

USB

Source	Ports	Details
Chipset	1 x USB Type-C (internal)	USB 3.2 Gen 2, via internal header
Chipset	1 x USB 3.2 Gen 2 Type-A	Rear panel (red)
Chipset	1 x USB Type-C	Rear panel, USB 3.2 Gen 1 support
Chipset	3 x USB 3.2 Gen 1	1 rear, 2 via internal header
Chipset	1 x USB 2.0/1.1	Rear panel
Chipset + 2 USB 2.0 Hubs	8 x USB 2.0/1.1	4 rear, 4 via internal headers

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6 Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header (USB 3.2 Gen 2 support)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
