XR2206 信号函数发生器套件

$12.00

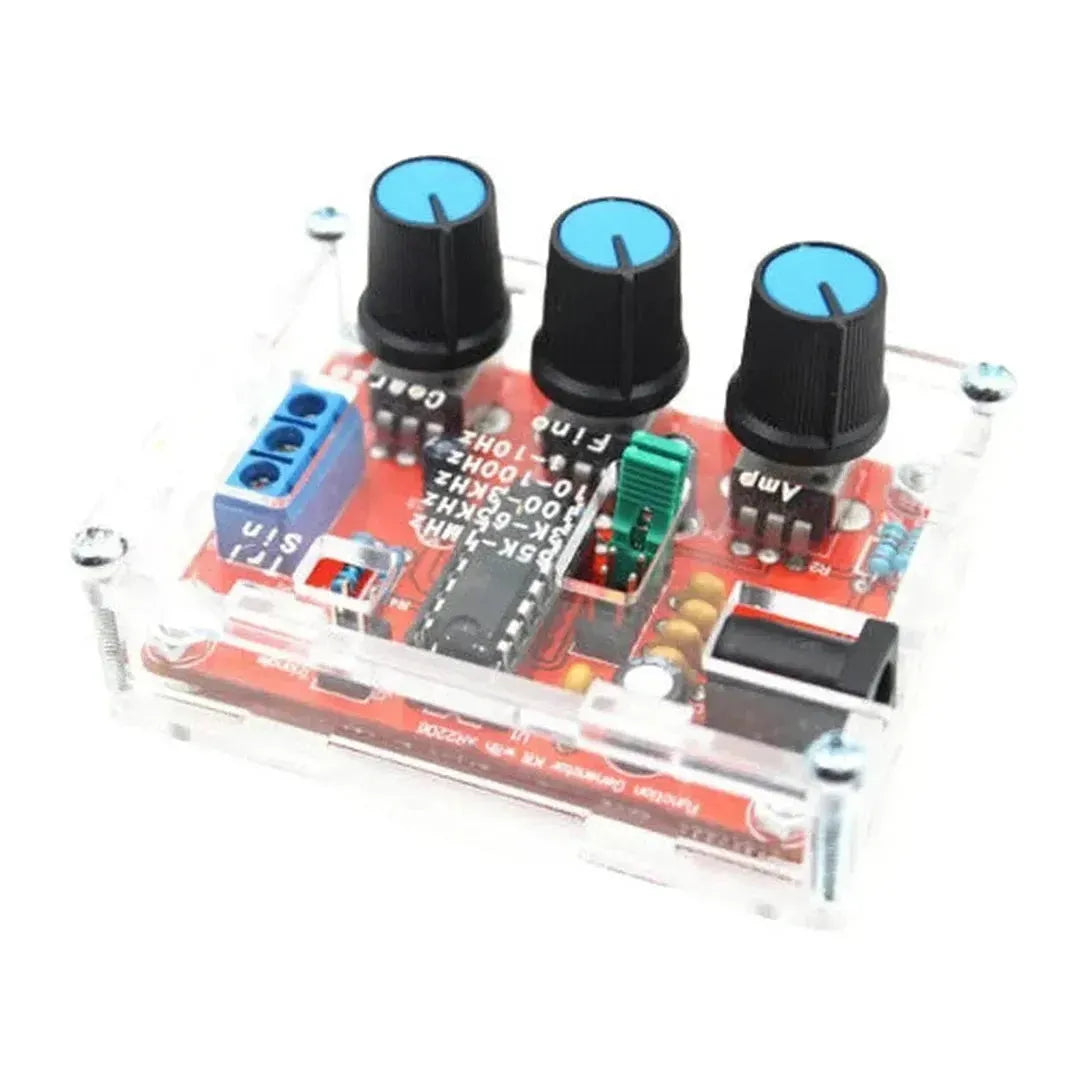

介绍 XR2206 函数信号发生器 DIY 套件：

使用我们的 XR2206 DIY 套件创建您自己的可定制信号发生器。此套件允许您生成各种波形，包括方波、正弦波和三角波信号，并具有可调频率和振幅设置。

规格：

电压供应：9 12V DC输入
- 波形：方波、正弦波和三角波
阻抗：600欧姆±10％
频率范围：1Hz - 1MHz

正弦波：

- 幅度：9V DC 输入时 0 - 3V
- 失真：小于 1% (1kHz 时)
- 平坦度：+0.05dB 1Hz - 100kHz

方波：

- 幅度：9V DC 输入时为 8V（无负载）
- 上升时间：小于 50ns（1kHz 时）
- 下降时间：小于 30ns（1kHz 时）
- 对称性：小于 5% (1kHz 时)

三角波：

- 幅度：9V DC 输入时 0 - 3V
- 线性度：小于 1% (高达 100kHz) 10mA

套餐包括：

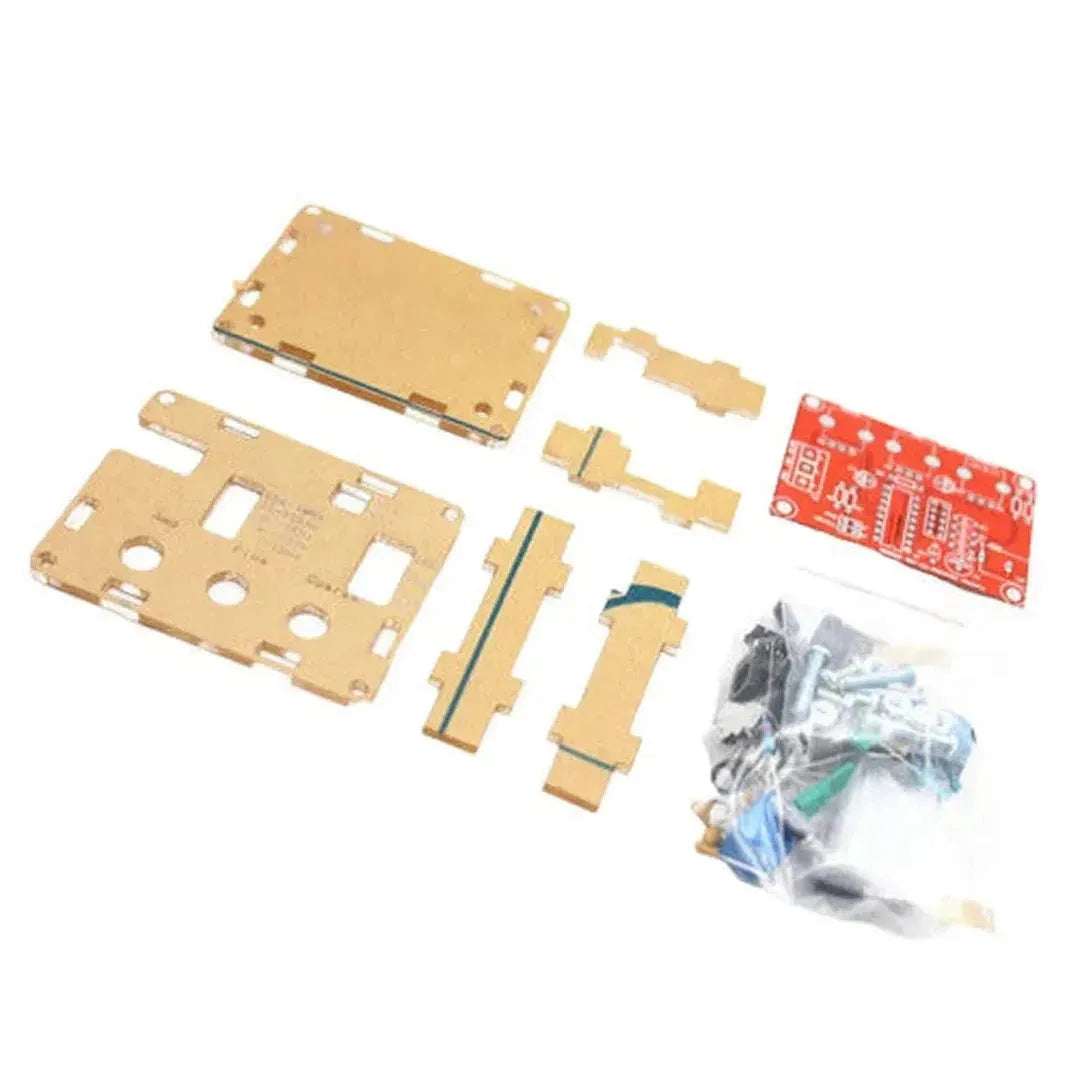

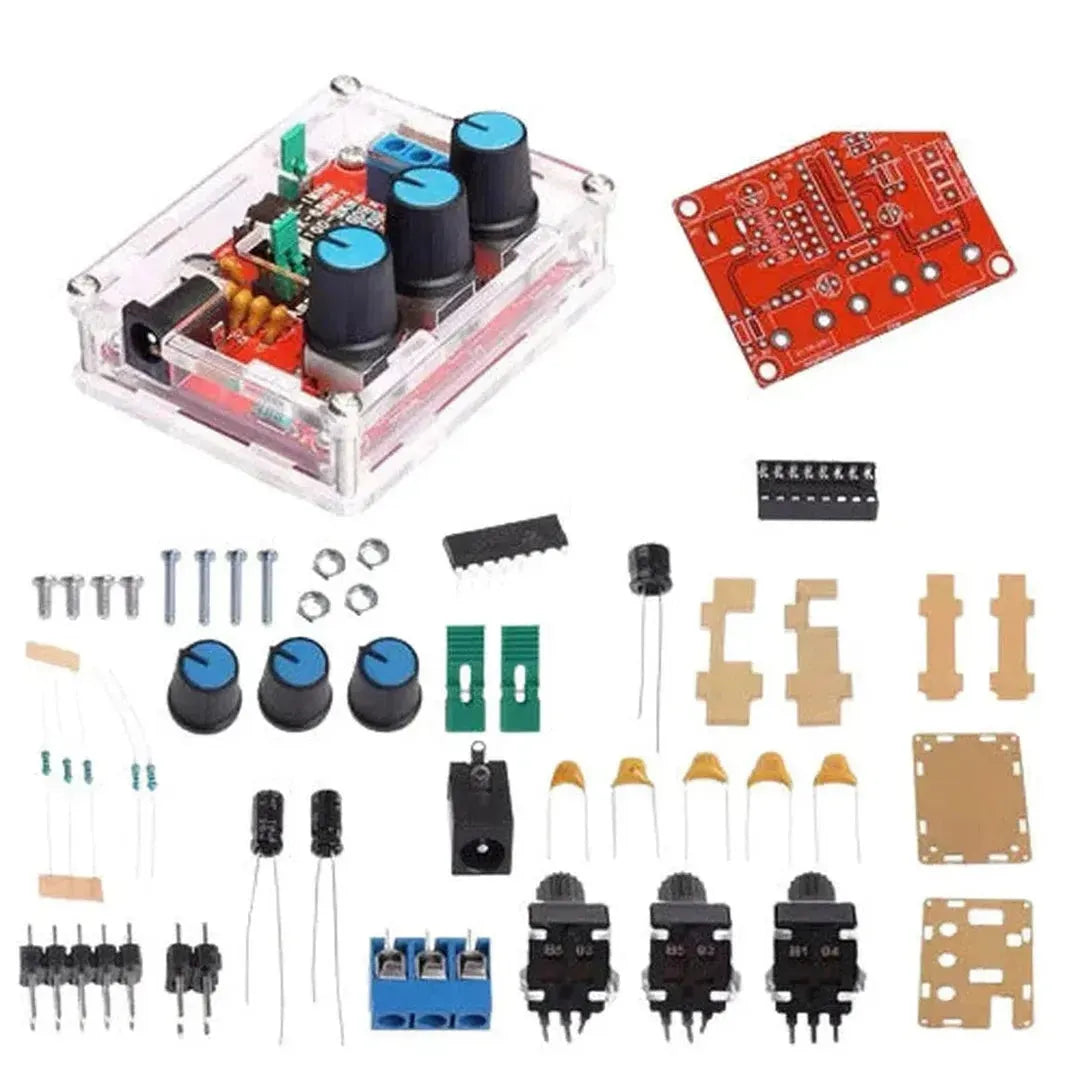

1 x XR2206 函数信号发生器 DIY 套件（带外壳），能够生成 1Hz 至 1MHz 频率范围内的三角形和方波输出信号。

这款 DIY 套件为您提供了构建多功能信号发生器的机会，该信号发生器可以根据您的特定要求进行调整。它配有保护套，确保您的发生器安全且易于使用。无论您需要测试电子电路还是进行实验，我们的 XR2206 函数信号发生器 DIY 套件都是您电子 DIY 工具库中的完美工具。使用这款紧凑且用户友好的 DIY 套件探索迷人的波形世界并尝试各种频率和幅度设置。
