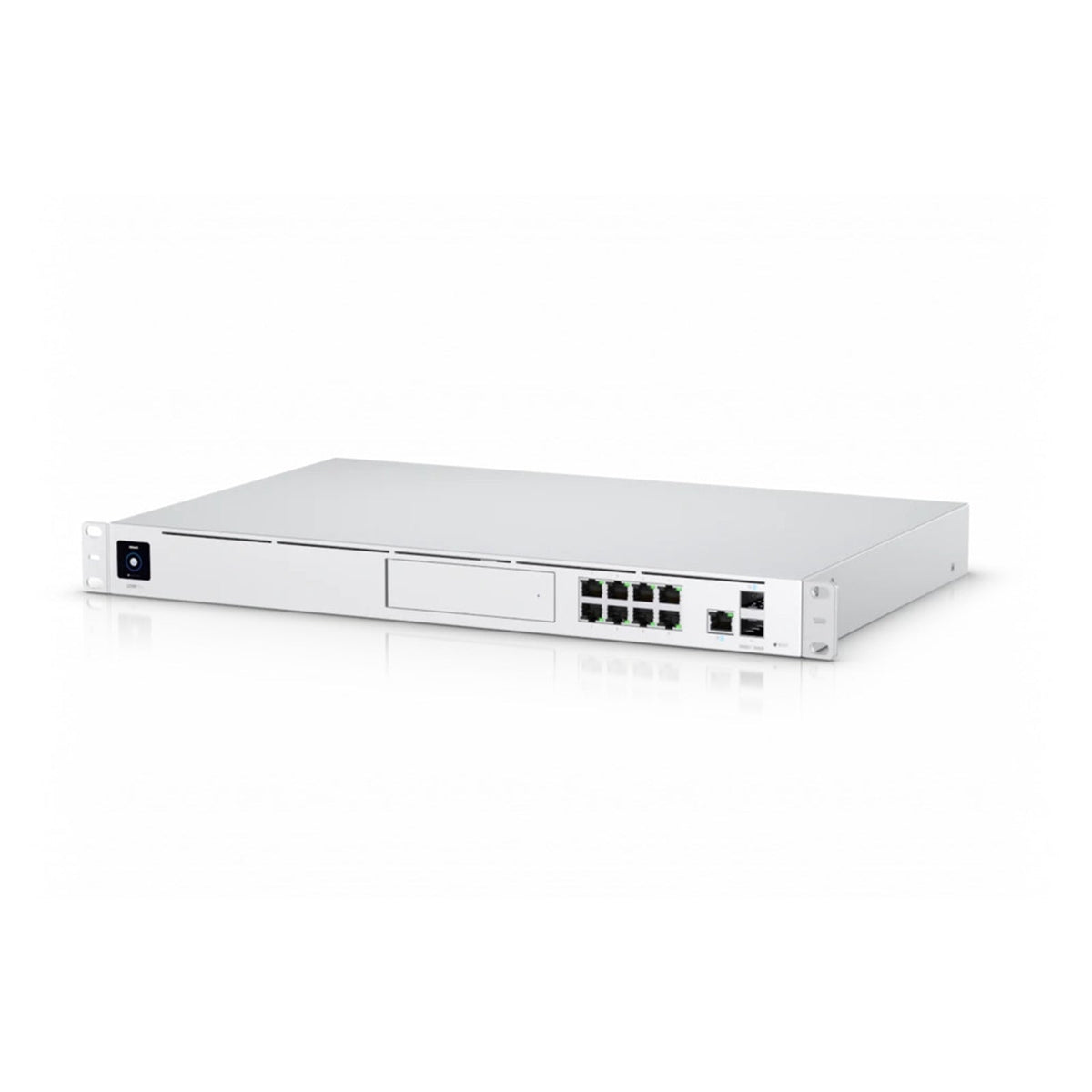

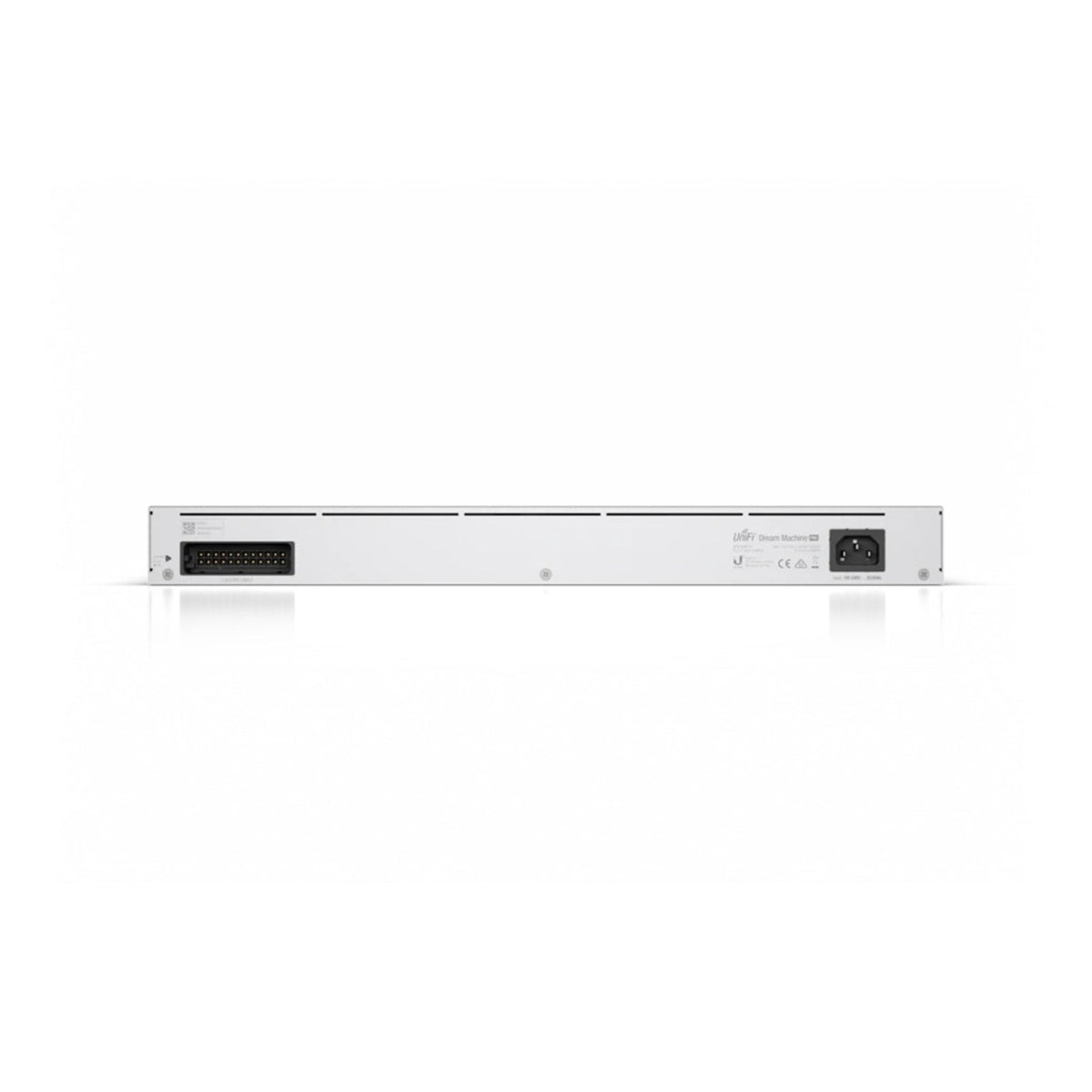

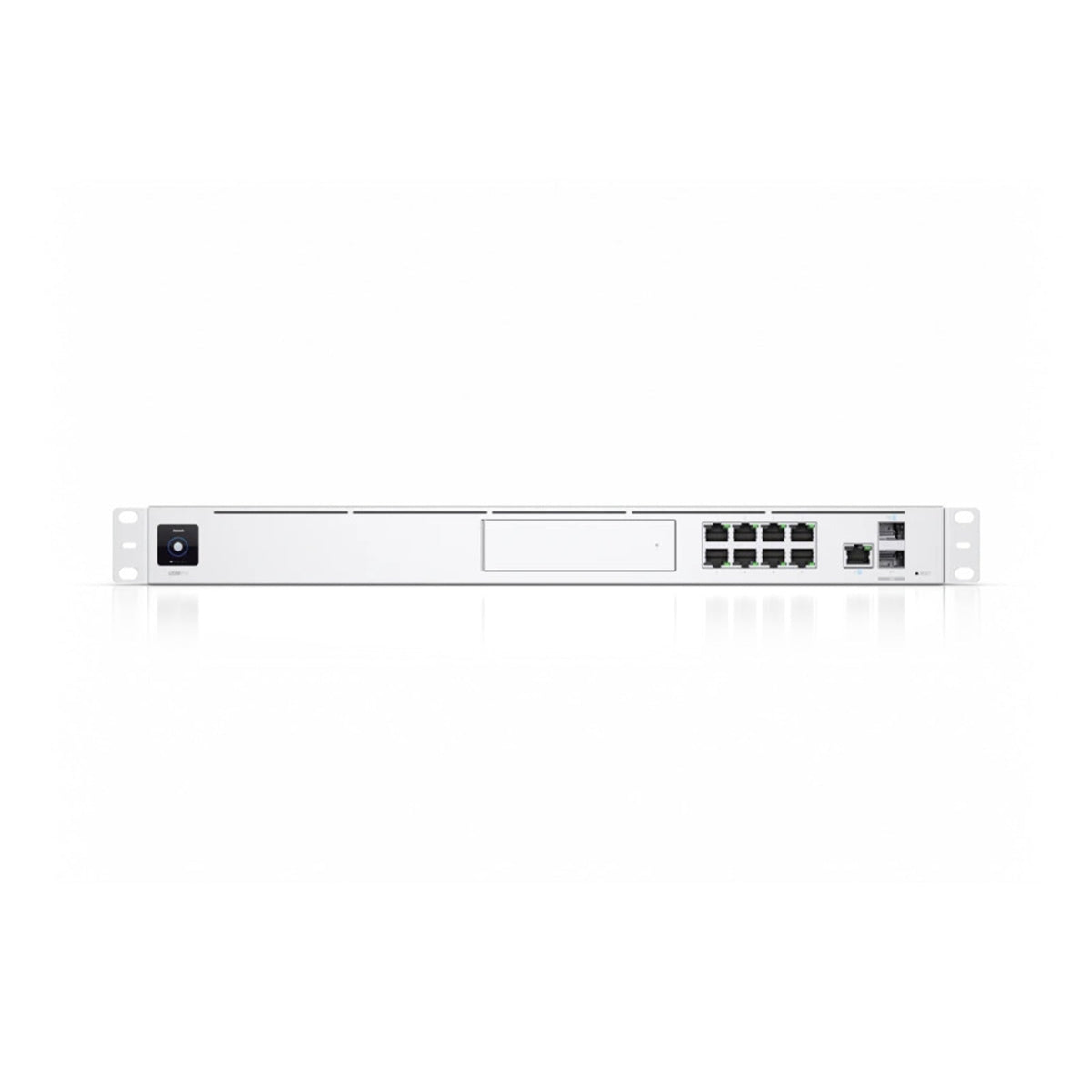

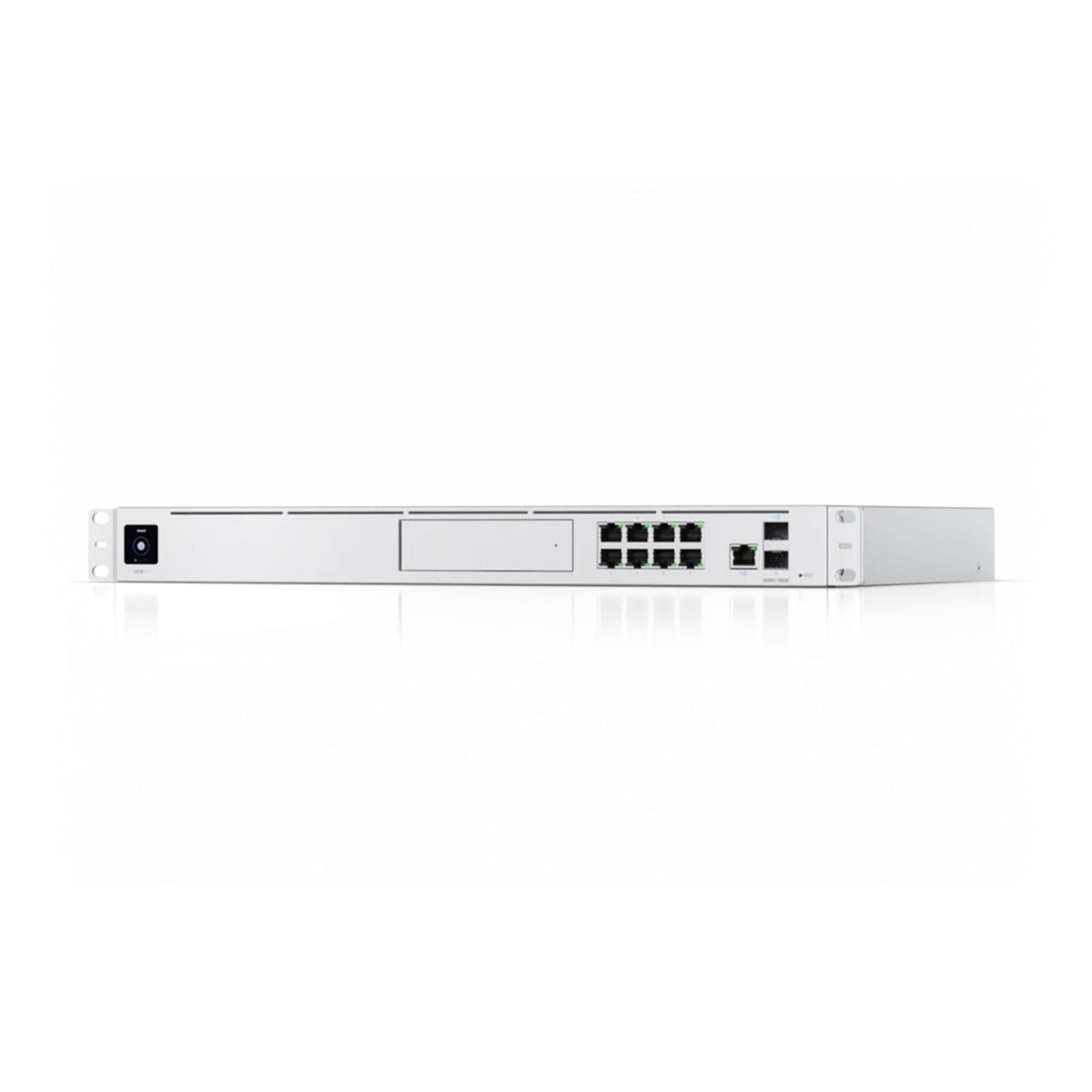

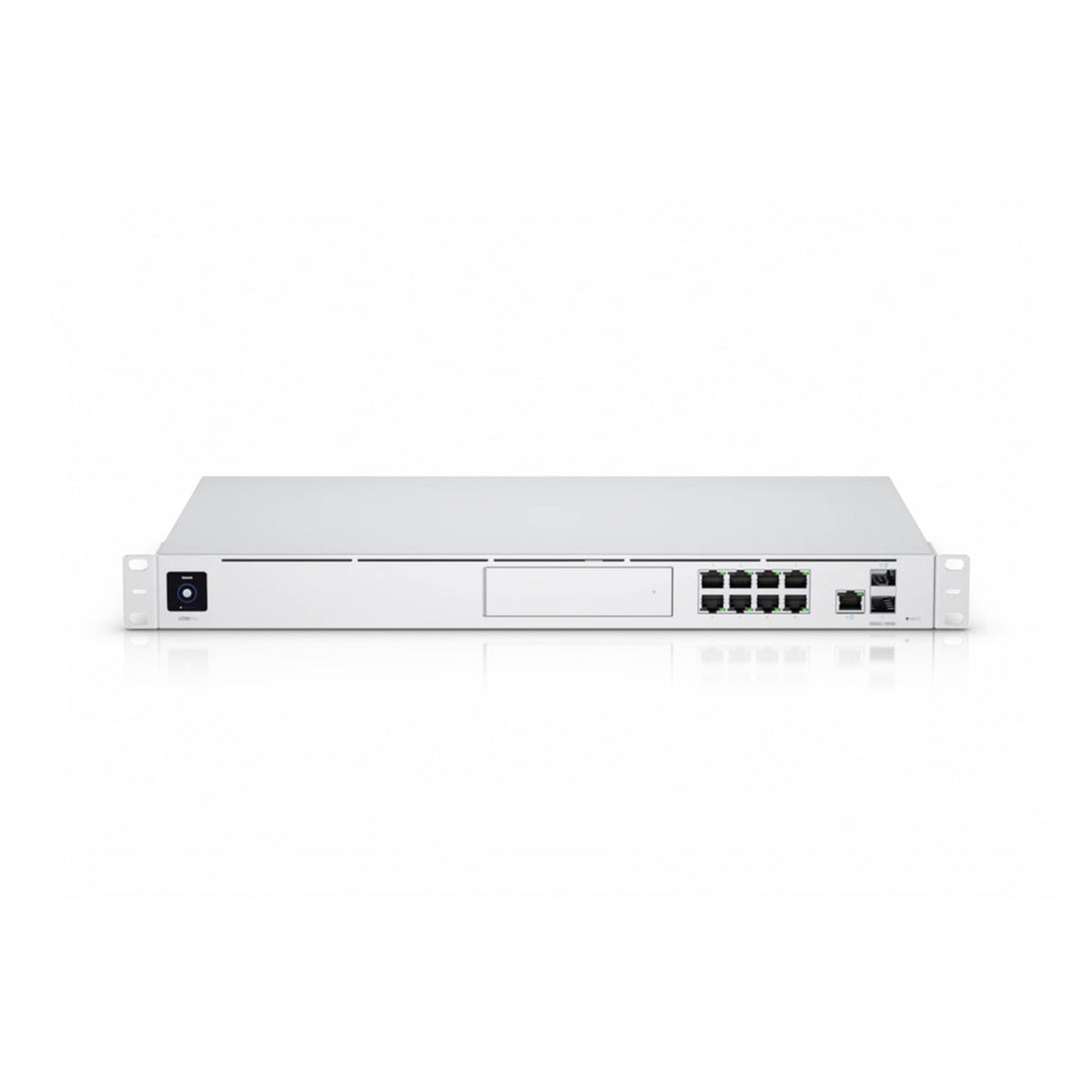

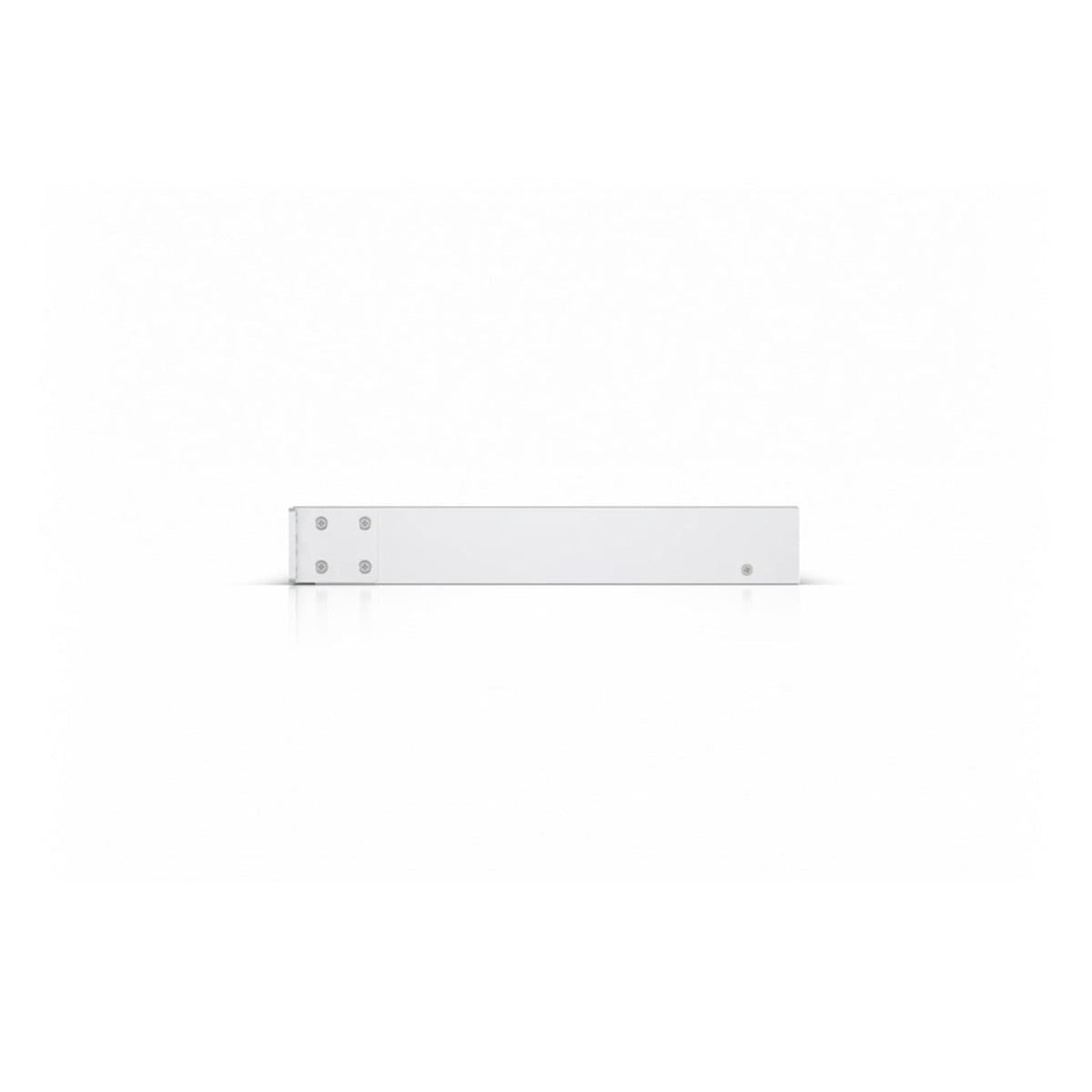

Ubiquiti UDM-PRO UniFi Dream Machine Pro - Combined Switch / Security Gateway / Controller / UniFi Protect NVR

Name: Ubiquiti UDM-PRO UniFi Dream Machine Pro - Combined Switch / Security Gateway / Controller / UniFi Protect NVR
Brand: UBIQUITI
Price: 630.00 GBP
Availability: InStock

$630.00

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

Ubiquiti UDM-PRO UniFi Dream Machine Pro - Combined Switch / Security Gateway / Controller / UniFi Protect NVR

$630.00

UniFi Dream Machine Pro (UDM‑Pro)

All‑in‑One Enterprise Security Gateway & Network Appliance

The UniFi Dream Machine Pro (UDM‑Pro) is an all‑in‑one enterprise network appliance designed for small to medium‑sized businesses and optimized for larger networks. It integrates current and upcoming UniFi controllers with an advanced security gateway, high‑speed WAN connectivity, an 8‑port Gigabit switch, and support for off‑the‑shelf 3.5" HDDs.

Key Features

All‑in‑One 1U Rack Appliance for small to medium‑sized businesses
Integrated UniFi OS combining UniFi controllers, 8‑port switch, and security gateway
UniFi Protect Video Surveillance NVR with off‑the‑shelf 3.5" HDD support
8‑Port Gigabit Switch with 10/100/1000 Mbps RJ45 and 10G SFP+ LAN
Advanced Enterprise Security with IPS/IDS, DPI, and Wi‑Fi AI capabilities
High‑Performance Hardware powered by a 1.7 GHz quad‑core processor
Optimized for Larger Networks with 10G SFP+ WAN and LAN interfaces

Interfaces

LAN Ports
(8) 10/100/1000 RJ45 LAN Ports
(1) 1/10G SFP+ LAN Port
WAN Ports
(1) 10/100/1000 RJ45 WAN Port
(1) 1/10G SFP+ WAN Port
Management Interfaces
Ethernet In‑Band
(1) Bluetooth BLE

Technical Specifications

Hardware & Performance

Specification	Detail
Processor	Quad ARM Cortex‑A57 Core at 1.7 GHz
System Memory	4 GB DDR4
On‑Board Flash Storage	16 GB eMMC
IDS/IPS Throughput*	3.5 Gbps
Rack Form Factor	1U
HDD Support	Off‑the‑shelf 3.5" HDD
Switch Ports	8‑port Gigabit (10/100/1000 RJ45)
High‑Speed Interfaces	1/10G SFP+ LAN, 1/10G SFP+ WAN

*Measured with iPerf3.

Dimensions & Weight

Specification	Detail
Width x Height x Depth	442.4 x 43.7 x 285.6 mm
	(17.42 x 1.72 x 11.24")
Weight	3.90 kg (8.60 lb)
Weight with Mounting Kits	3.99 kg (8.80 lb)

Environment

Specification	Detail
Operating Temperature	-10° to 40° C (14° to 104° F)
Operating Humidity	5 to 95% Noncondensing

Power

Specification	Detail
Max. Power Consumption	33W
Voltage Range	100 to 240VAC
Power Method	(1) Universal AC Input, 100–240VAC, 50/60 Hz
Redundant Power	(1) RPS DC Input
Power Supply	Internal 50W / 12V
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
