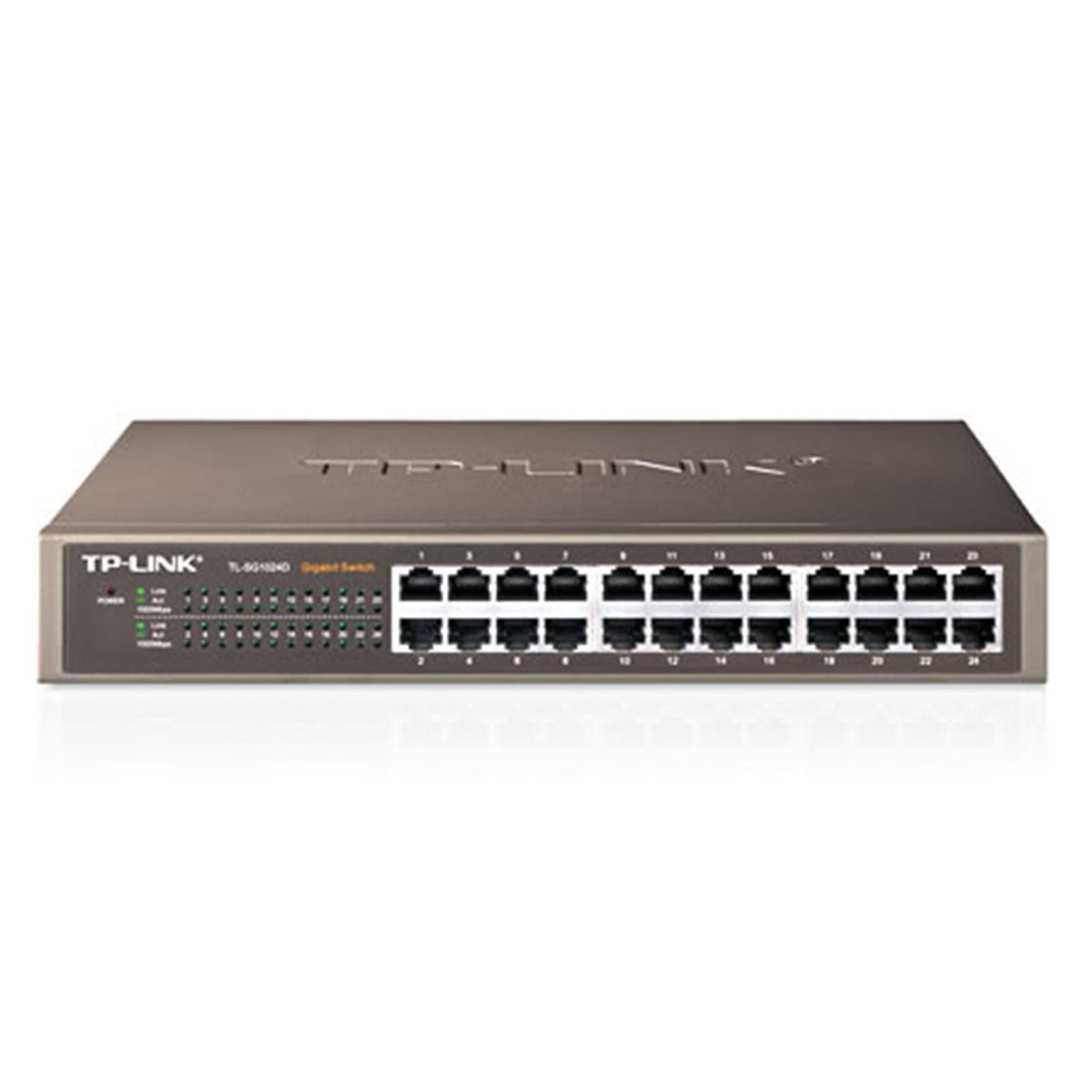

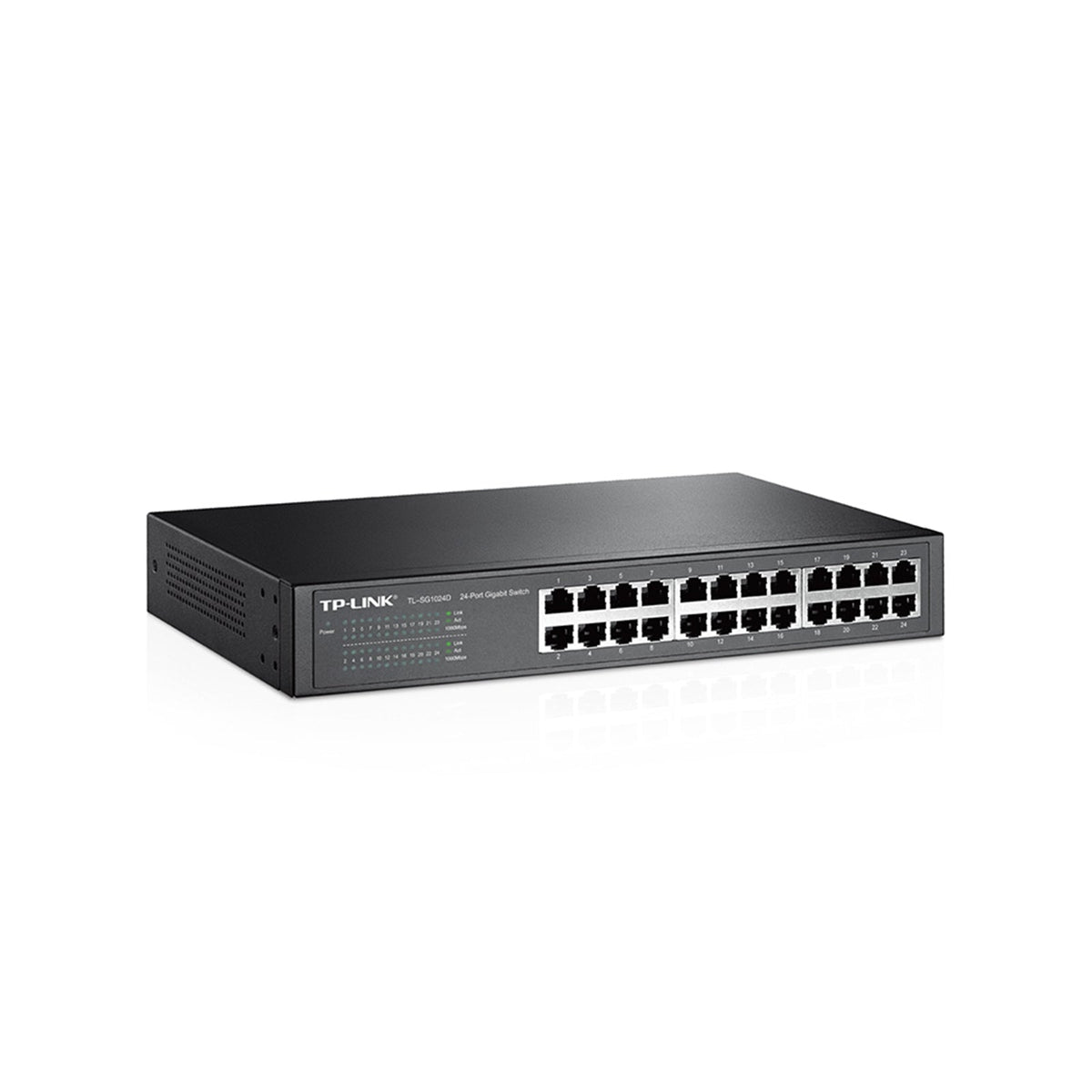

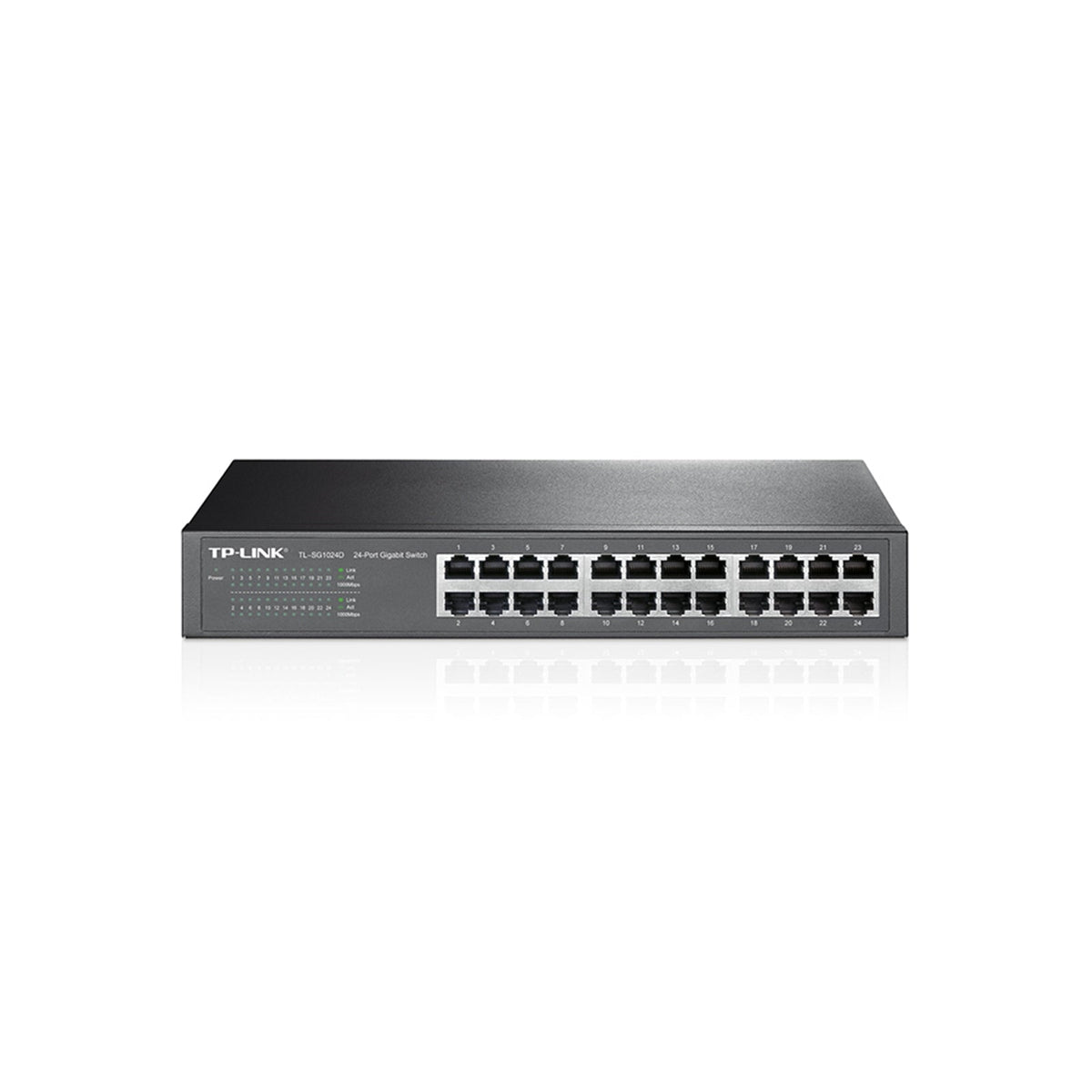

TP-Link TL-SG1024D 24-Port Metal Gigabit Desktop/Rackmount Network Switch
$141.00
TP-Link TL-SG1024D 24-Port Gigabit Ethernet Switch
Upgrade your network to high-speed Gigabit performance with the TL-SG1024D. This 24-port Gigabit Ethernet switch delivers a high-performance, low-cost, and easy-to-use solution for seamlessly improving an existing network to 1000 Mbps.
All 24 ports support auto MDI/MDIX, so you never need to worry about cable types—simply plug and play. With innovative energy-efficient technology and recyclable packaging, the TL-SG1024D is designed as an eco-friendly choice for business networks.
Key Features
High-Performance Gigabit Networking
- 24 Gigabit RJ45 ports for fast data transfer and large file handling
- Compatible with 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet devices
- Non-blocking switching architecture for full wire-speed forwarding and filtering
- 10 KB Jumbo frame support to significantly improve large file transfer performance
- IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex) to reduce traffic congestion and enhance reliability
- Ideal for upgrading to Gigabit while protecting existing network investments
TP-LINK Green Technology
- Energy-efficient design that can greatly expand network capacity with reduced power consumption
- Automatically adjusts power consumption based on link status to help limit carbon footprint
- Complies with EU RoHS, prohibiting the use of certain hazardous materials
- 80% of the packaging material is recyclable
Easy, Hassle-Free Installation
- Plug-and-play installation with no configuration required
- Auto MDI/MDIX on all ports eliminates the need for crossover cables
- Auto-negotiation on each port detects link speed (10, 100, or 1000 Mbps) and adjusts for optimal performance
Specifications
Standards & Protocols
| Item | Detail |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Interface
| Item | Detail |
|---|---|
| Interface | 24 × 10/100/1000 Mbps RJ45 ports (Auto Negotiation / Auto MDI/MDIX) |
Network Media
| Speed | Media Type | Maximum Distance |
|---|---|---|
| 10BASE-T | UTP category 3, 4, 5 cable | 100 m |
| 100BASE-TX | UTP category 5, 5e or above cable | 100 m |
| 1000BASE-T | UTP category 5, 5e or above cable | 100 m |
Hardware
| Item | Detail |
|---|---|
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Dimensions (W × D × H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Mounting | Rack mountable |
| Max Power Consumption | 13.08 W (220 V / 50 Hz) |
| Max Heat Dissipation | 44.63 BTU/h |
Performance
| Item | Detail |
|---|---|
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
Certification
| Certification |
|---|
| FCC |
| CE |
| RoHS |
Package Contents
- 24-Port Gigabit Desktop/Rackmount Switch (TL-SG1024D)
- Power cord
- Installation guide
- Rackmount kits
- Rubber feet
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -40 – 70°C (-40 – 158°F) |
| Operating Humidity | 10% – 90% |
| Storage Humidity | 5% – 90% (non-condensing) |
