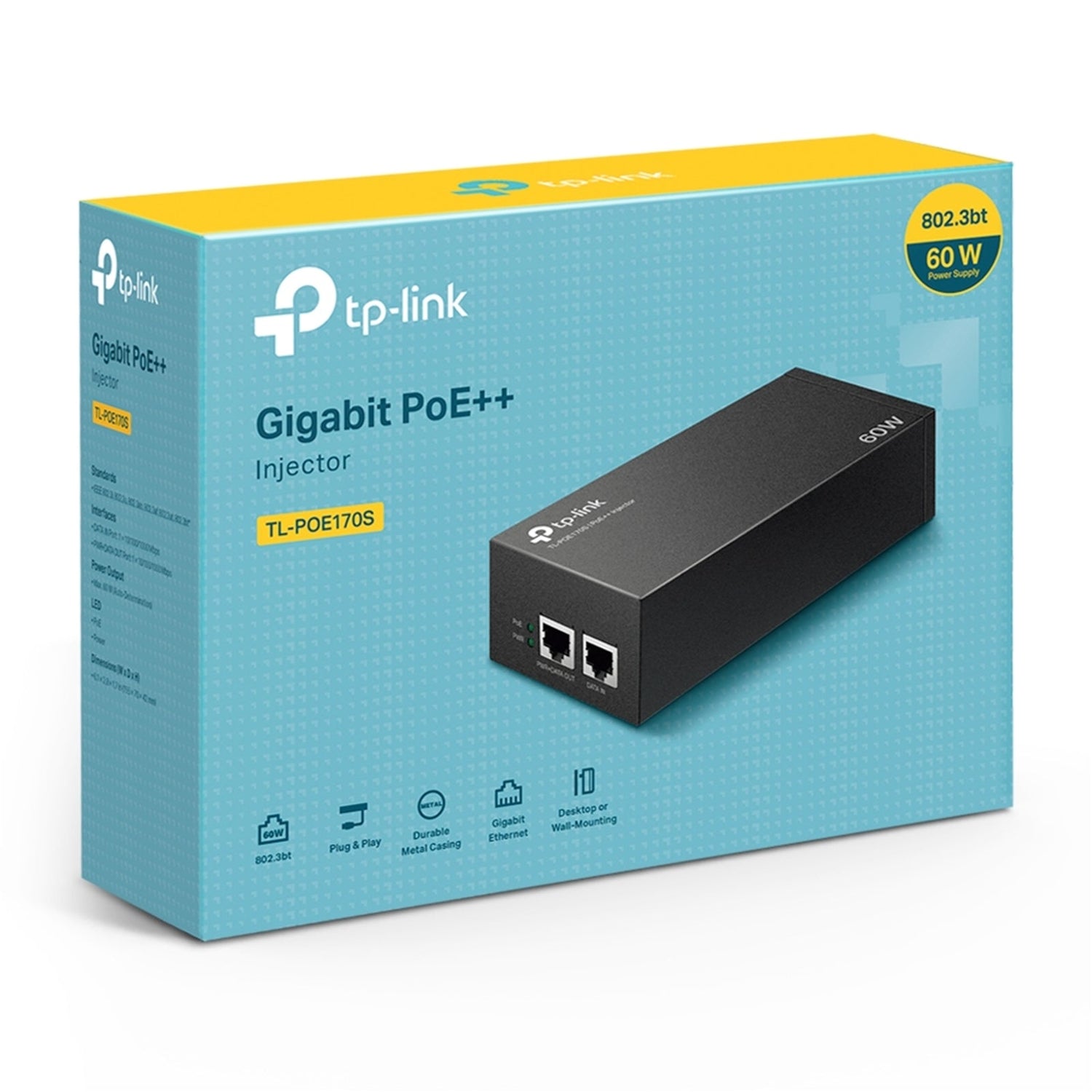

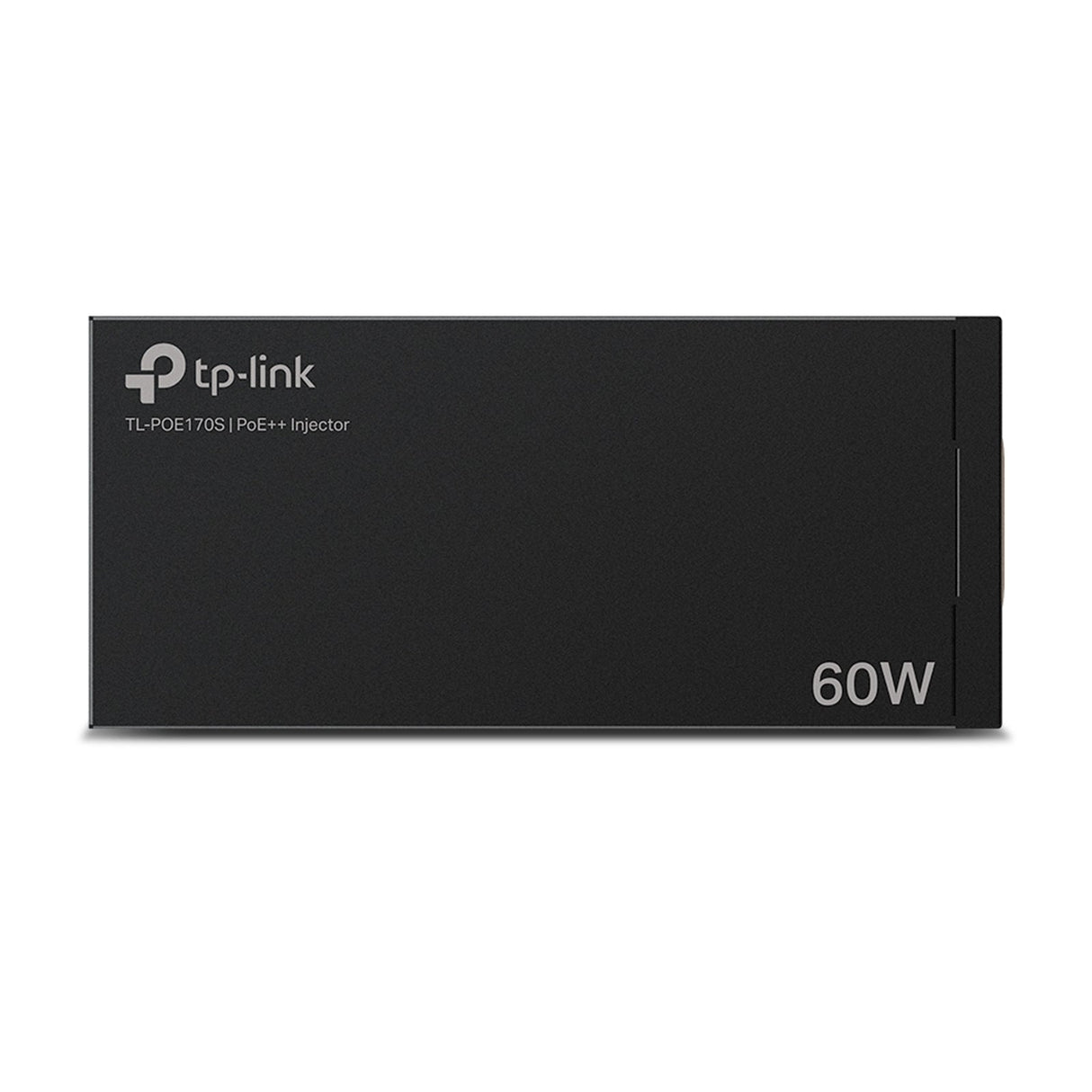

TP-Link TL-POE170S IEEE 802.3af/at/bt 60W PoE++ Injector
$76.00
TP-Link PoE++ Injector TL-POE170S – Up to 60 W Power over Ethernet
The PoE++ Injector TL-POE170S expands your network by delivering both data and power over a single Ethernet cable. Fully compliant with IEEE 802.3af/at/bt standards and supplying up to 60 W, it is designed to support devices such as PTZ IP cameras and LED equipment in locations without existing power lines or outlets.
Note: TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor.
Key Features
- High-Speed Connectivity
- 2 Gigabit ports for faster data transmission
- 1 × 10/100/1000 Mbps RJ45 data-in port
-
1 × 10/100/1000 Mbps RJ45 power+data-out port
-
Power Over Ethernet (PoE++)
- Complies with IEEE 802.3af/at/bt* standards
- Supplies up to 60 W of power
- Transmits data and power simultaneously over a single Ethernet cable
-
Automatically detects and delivers the exact power required by connected devices
-
Easy Installation
- Plug & Play setup with no configuration required
- Wall-mounting and desktop design fits most installation scenarios
-
Integrated power supply for convenient deployment
-
Durable Construction
- Robust metal casing for long-term use
Specifications
Network
| Item | Details |
|---|---|
| Standards & Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
Hardware Features
| Item | Details |
|---|---|
| Network Media | 10BASE-T: UTP Cat 3, 4, 5 (max 100 m); EIA/TIA-568 100Ω STP (max 100 m) |
| 100BASE-TX: UTP Cat 5, 5e (max 100 m); EIA/TIA-568 100Ω STP (max 100 m) | |
| 1000BASE-T: UTP Cat 5, 5e, 6 (max 100 m) | |

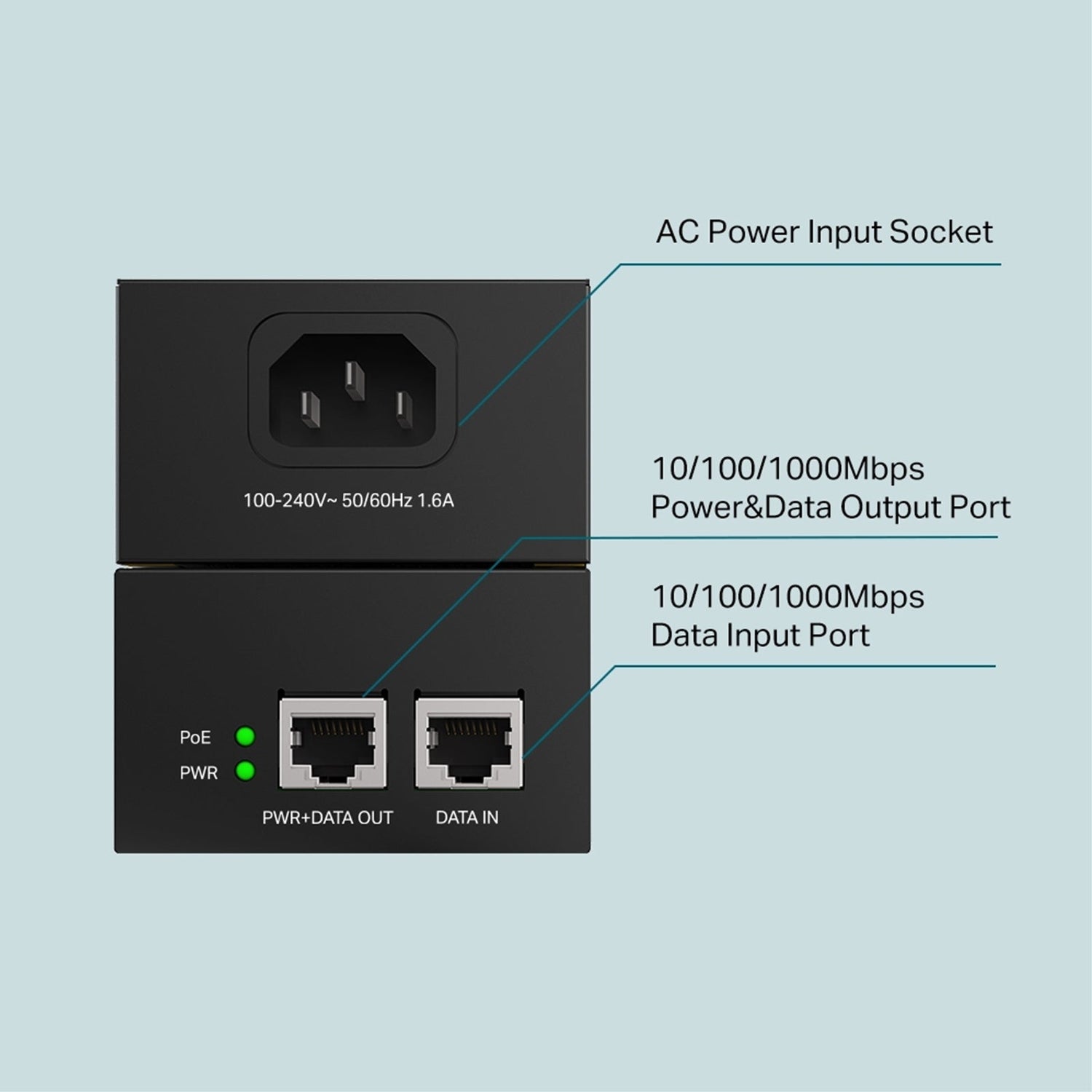

| Ports | 1 × 10/100/1000 Mbps RJ45 data-in port |
| 1 × 10/100/1000 Mbps RJ45 power+data-out port | |
| Power | Input: 100–240 V, 50/60 Hz, 1.6 A |
| Consumption | Output: Auto-determines necessary power requirements (max 60 W) |
| Basic Functions | Auto-Sensing Algorithm provides power with 802.3af/at/bt* PD |
| Auto-determines necessary power requirements | |
| Wall-mounting and desktop installation supported | |
| Plug-and-Play | |
| Dimensions | 6.1 × 2.8 × 1.7 in (155 × 70 × 42 mm) |
| Material | Metal casing |
General
| Item | Details |
|---|---|
| Certification | FCC, CE, RoHS |
Environment
| Item | Range |
|---|---|
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
Package Contents
- PoE++ Injector TL-POE170S
- Installation Guide
- Power Cord
- RJ45 Cable
