Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
$50.00
Mercusys MS105GP 5‑Port Gigabit Desktop Switch with 4‑Port PoE
The Mercusys MS105GP is a compact 5‑Port Gigabit Desktop Switch designed to deliver fast, stable connectivity with integrated Power over Ethernet (PoE) for simplified network deployment.
Key Features
Full Gigabit Performance
- 5 × 10/100/1000 Mbps RJ45 ports
- Auto‑Negotiation and Auto MDI/MDIX support
- High‑speed data rates:
- 10/100/1000 Mbps at Half Duplex
- 20/200/2000 Mbps at Full Duplex

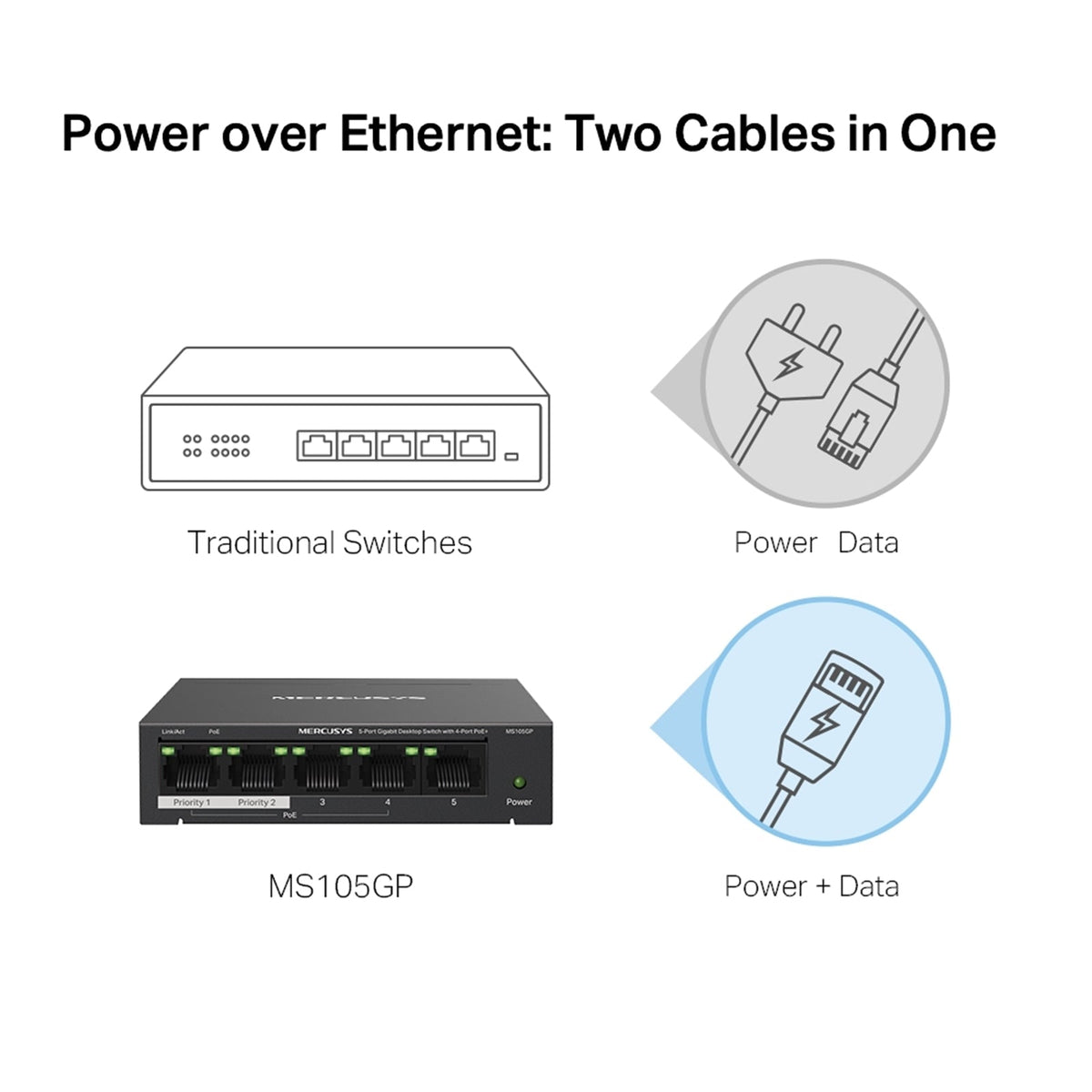

Power over Ethernet (PoE)
- 4 × PoE ports (Port 1 – Port 4)
- Data and power delivered over a single Ethernet cable
- PoE power up to 30 W per PoE port

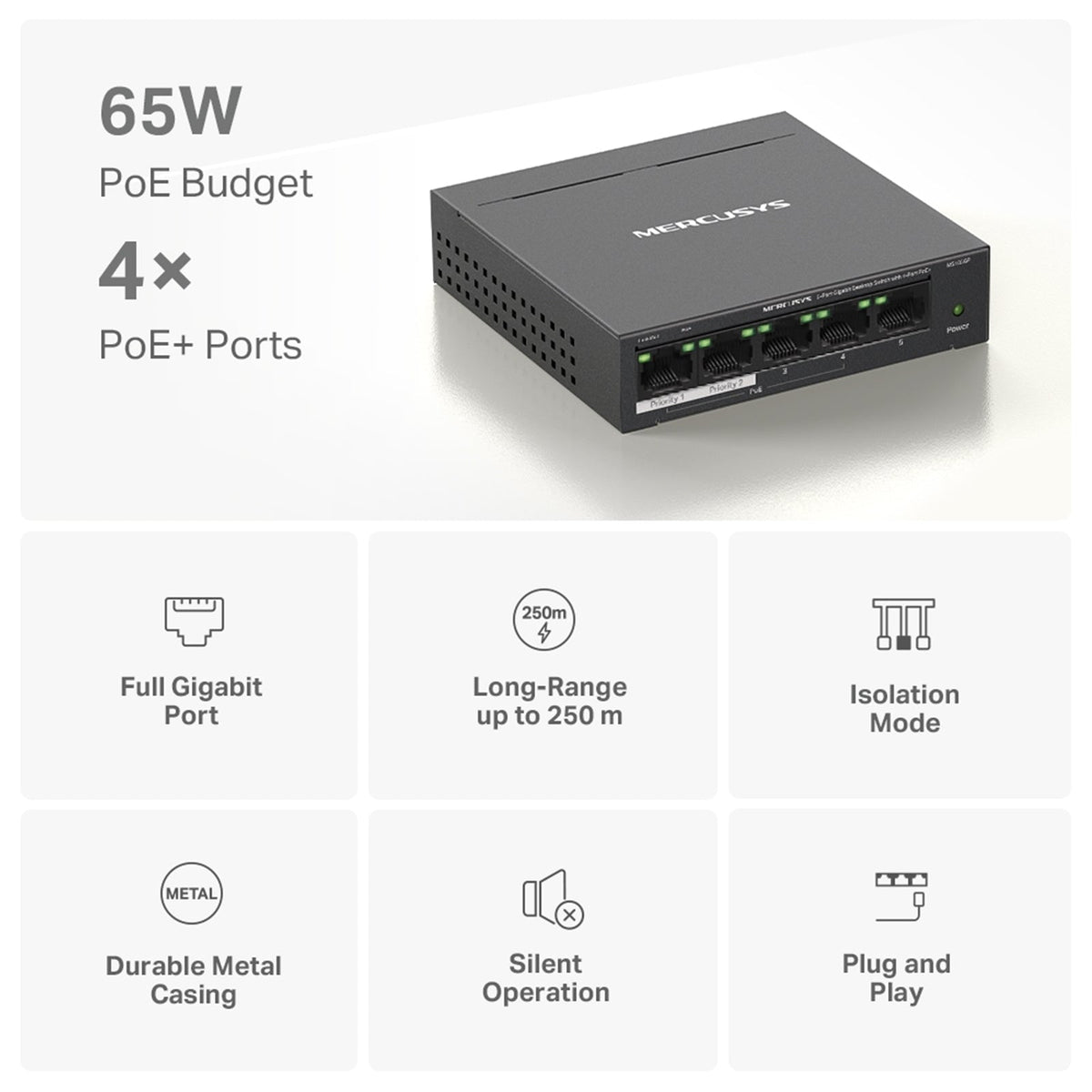

- Total PoE power budget up to 65 W
- Compliant with IEEE 802.3af/at powered devices

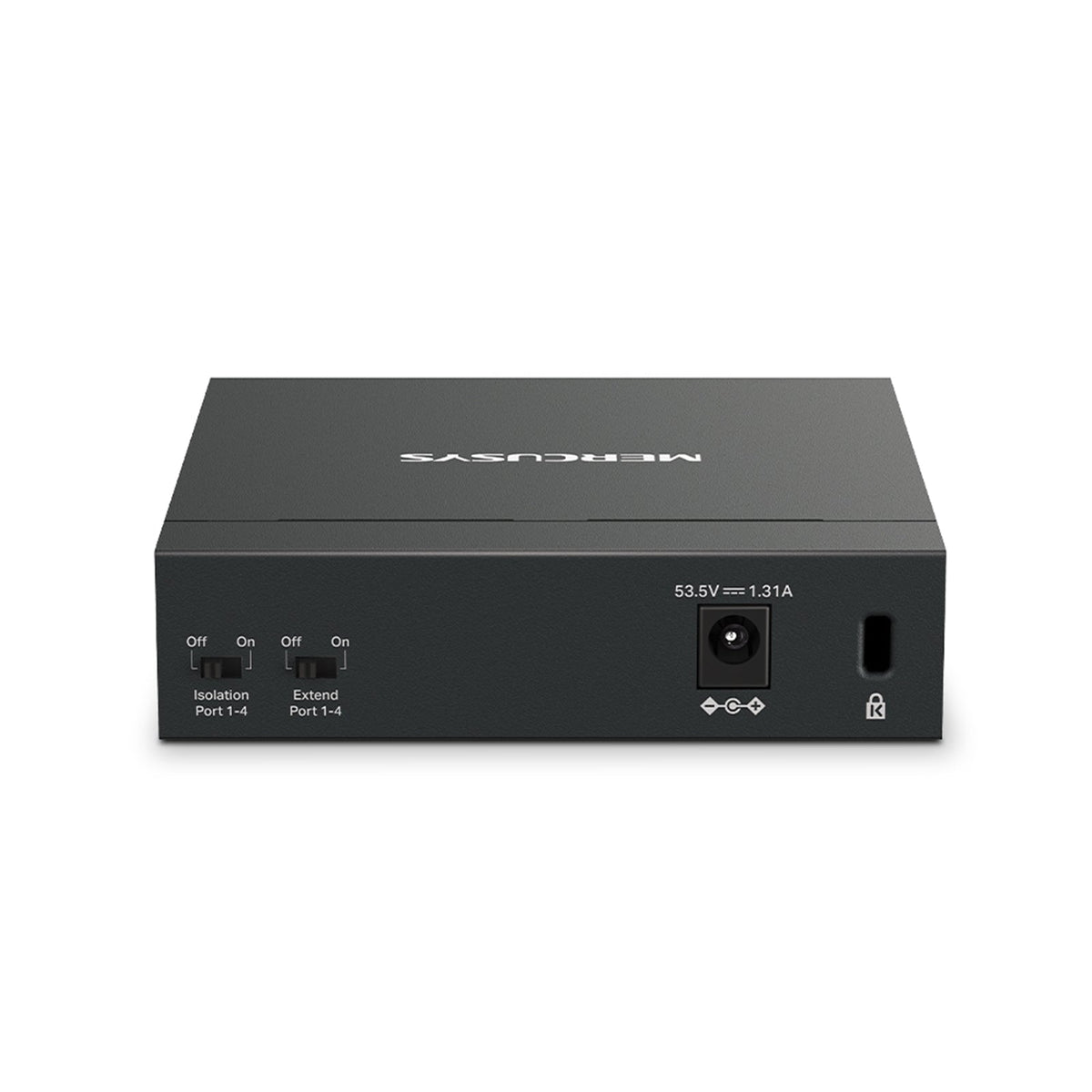

Extended Range & Isolation Modes
- Extend Mode: Increases PoE transmission distance up to 250 m
- Isolation Mode: One‑click port isolation to divide traffic for enhanced stability and security
Reliable Build & Easy Deployment
- Durable metal casing for efficient heat dissipation and long network life
- Desktop or wall‑mount installation options
- Plug and Play operation with no additional configuration required
Specifications
Hardware
| Item | Details |
|---|---|
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD |
| Interfaces | 5 × 10/100/1000 Mbps ports, Auto‑Negotiation, Auto MDI/MDIX |
| PoE Standard | Compliant with IEEE 802.3af/at powered devices |
| PoE Ports | Port 1 – Port 4 |
| PoE Power Budget | 65 W |
| External Power Supply | External power adapter (Output: 53.5 V / 1.31 A) |
| Dimensions | 99.8 × 98 × 25 mm |
| Installation | Desktop, Wall Mount |
| Jumbo Frame | 9 KB |
| MAC Address Table | 2K |
| LED Indicators | Ethernet Ports (1, 2, 3, 4, 5), Power |
Performance & Power
| Item | Details |
|---|---|
| Max Power Consumption | 3.13 W (220 V / 50 Hz, no PD connected) |
| 75.15 W (220 V / 50 Hz, with 65 W PD) | |
| Max Heat Dissipation | 10.64 BTU/h (no PD connected) |
| 255.51 BTU/h (with 65 W PD connected) | |
| Transfer Method | Store and Forward |
Software & Advanced Features
| Item | Details |
|---|---|
| Management | Plug and Play |
| Advanced Features | 802.3x Flow Control |
| IGMP Snooping V1/V2/V3 | |
| Isolation Mode | |
| Extend Mode |
Package Contents
- 5‑Port Gigabit Desktop Switch with 4‑Port PoE (MS105GP)
- Power Adapter
- Quick Installation Guide
Environmental
| Condition | Range |
|---|---|
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature | -40°C – 70°C (-40°F – 158°F) |
| Operating Humidity | 10% – 90% RH, non‑condensing |
| Storage Humidity | 5% – 95% RH, non‑condensing |
