DeepCool AN600 Low-Profile CPU Cooler, 1x 120mm PWM Fans, Aluminium Fins, Copper Base, 6x Heatpipes, Intel/AMD

$66.00

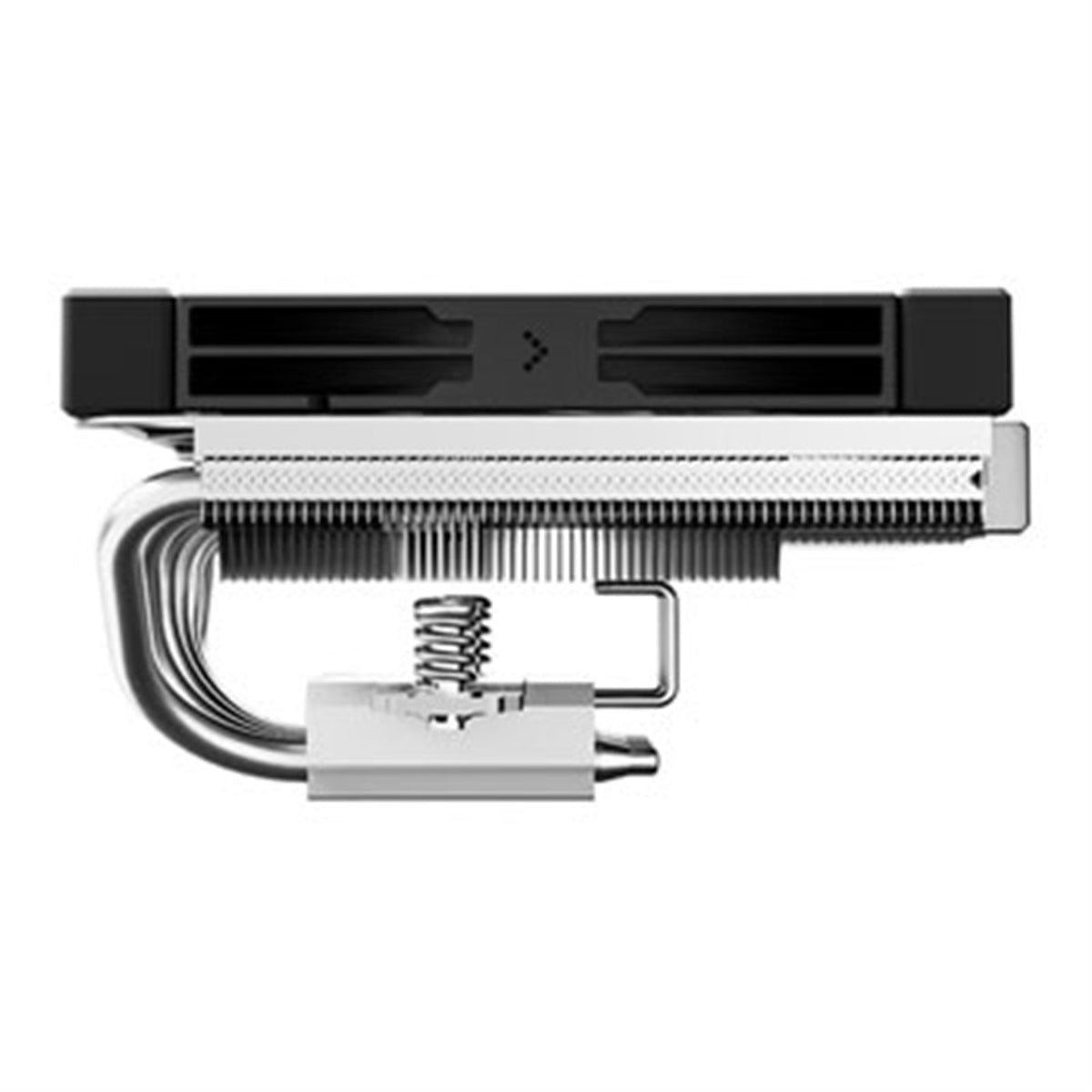

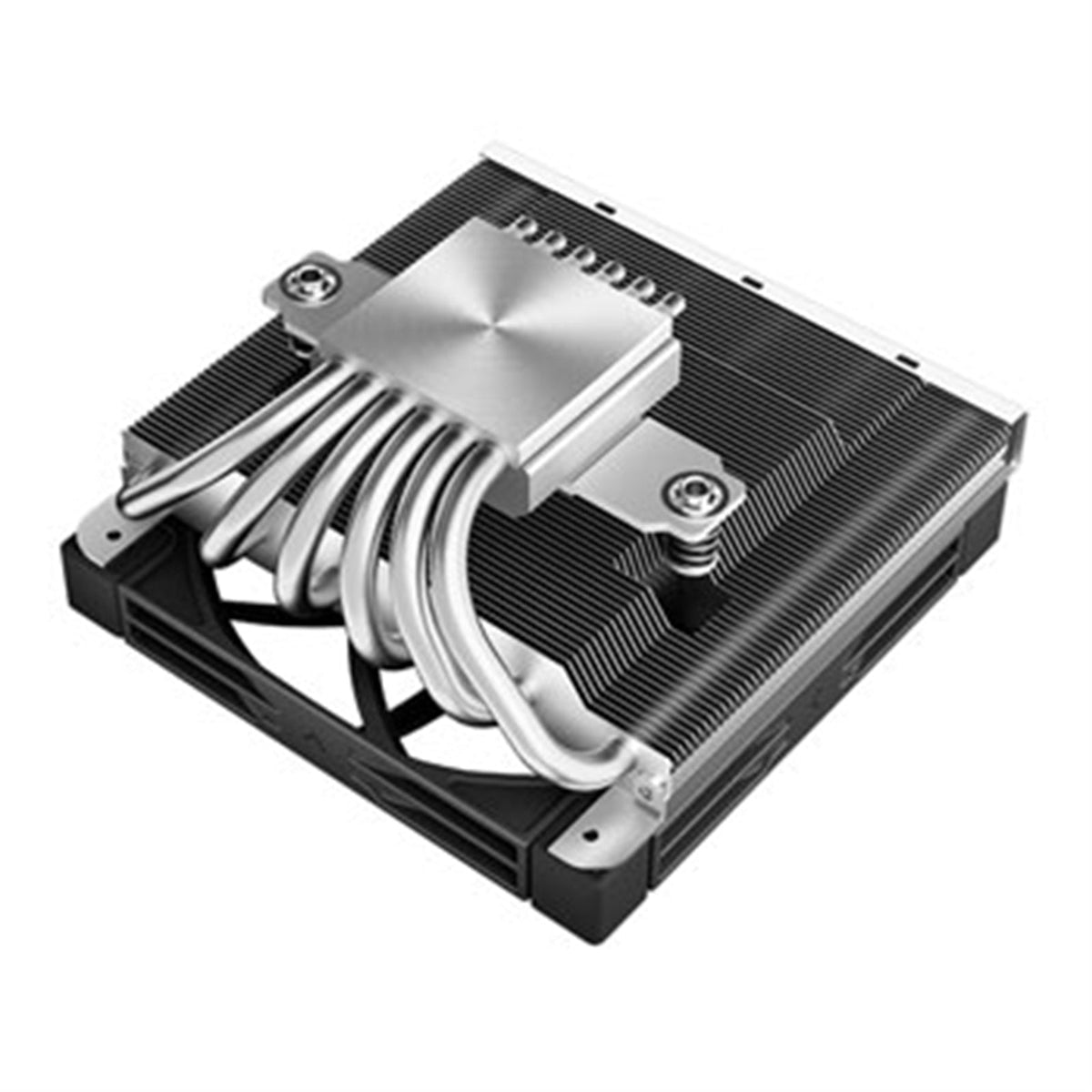

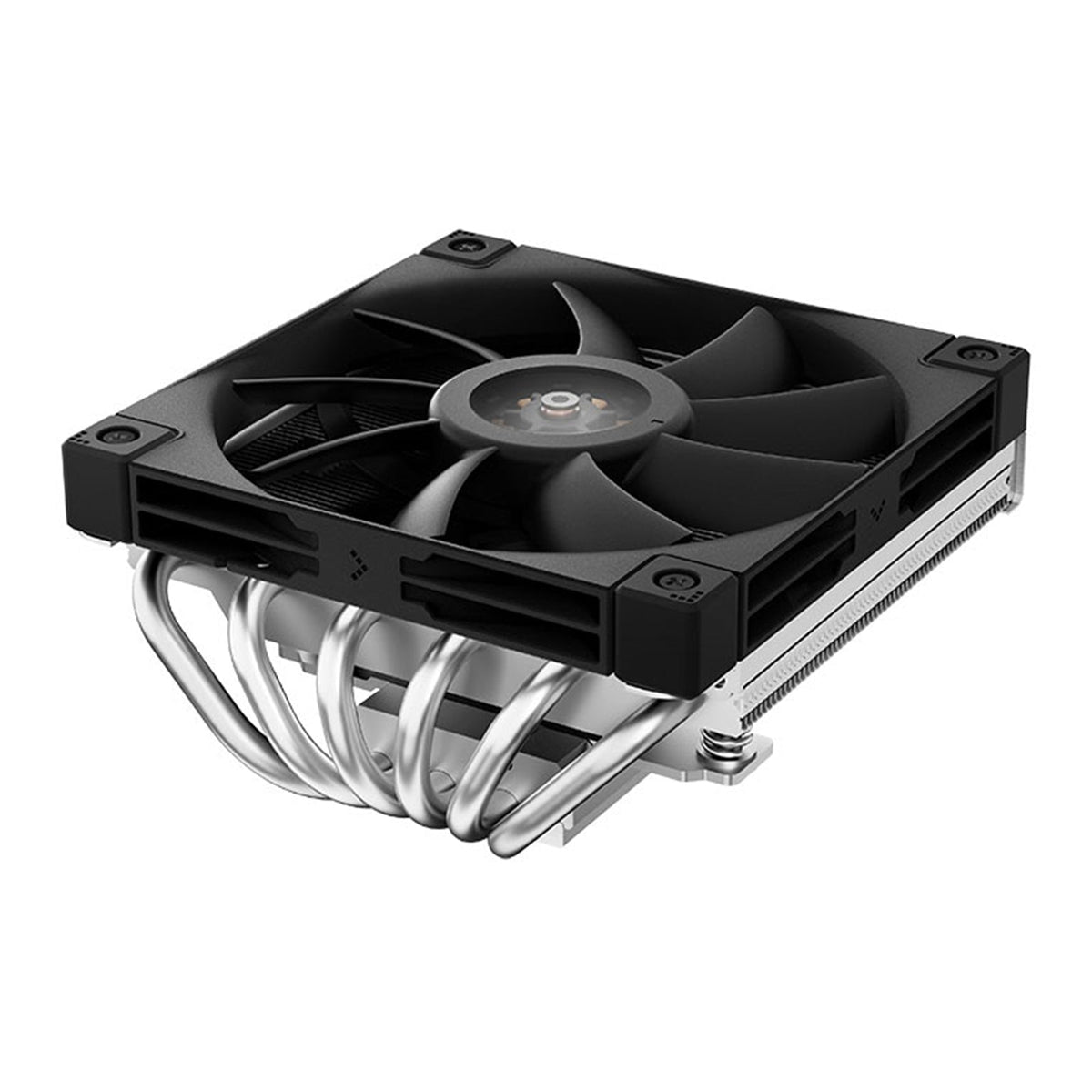

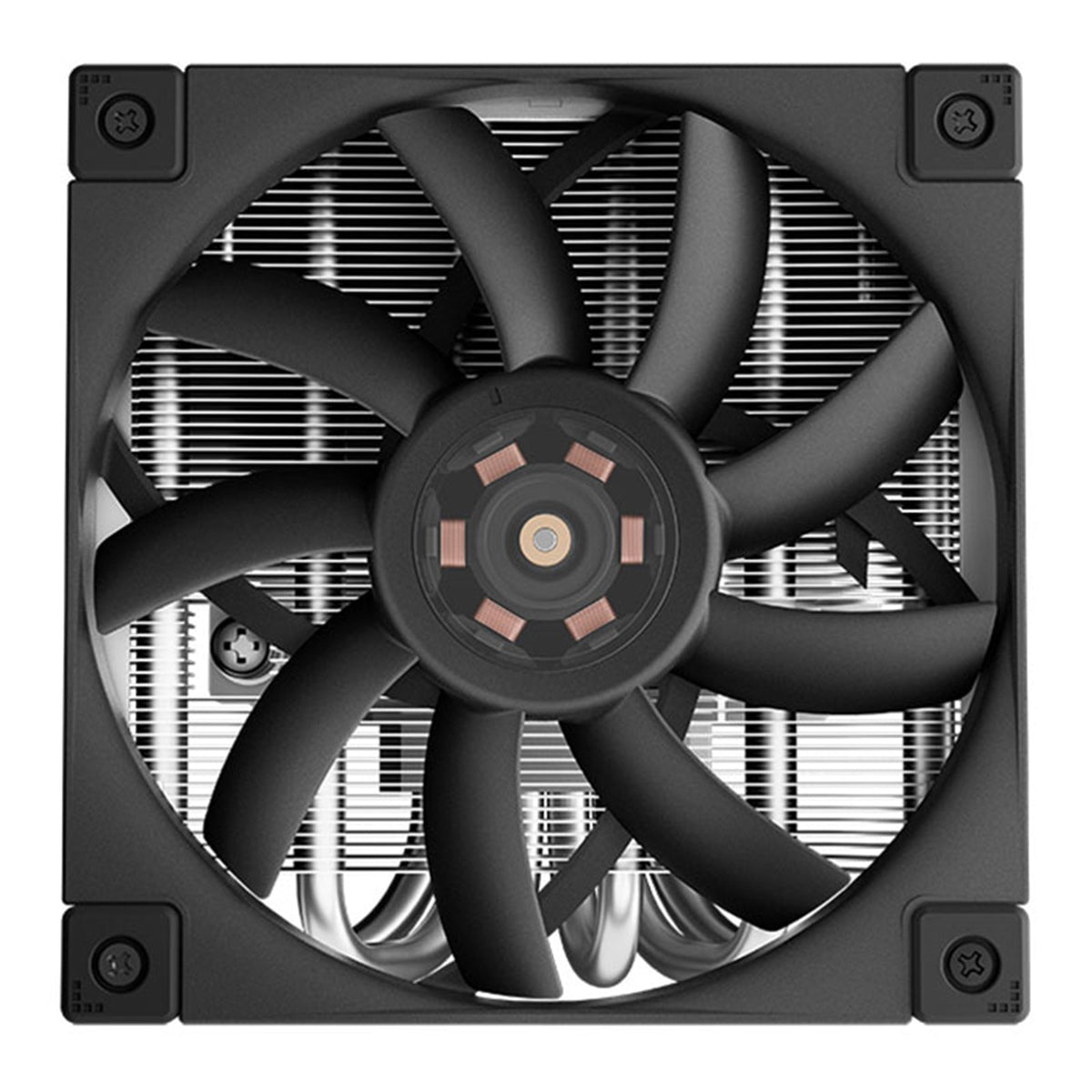

AN600 Top-Flow Low-Profile CPU Cooler

The AN600 is a low-profile CPU cooler designed to deliver up to 180W of cooling performance while also directing airflow over nearby components such as RAM modules. With its overhanging, top-flow design and slim 120 mm high-airflow fan, the AN600 actively cools RAM modules up to 40 mm tall and is compatible with ITX motherboards.

Key Features

Low-Profile Design (67 mm Height)
Compact form factor ideal for space-constrained builds where clearance is limited.
Efficient 180W CPU Cooling
Combines 62 aluminum fins, 6 optimized heatpipes, and a raised copper coldplate to provide strong cooling performance in a short cooler.
Top-Down Airflow for Component Cooling
The overhanging design and top-flow layout push air not only through the fin stack but also downward onto RAM and VRM components.
RAM Cooling up to 40 mm Height
Actively cools RAM modules up to 40 mm tall for enhanced system thermals.
Optimized 120 mm Slim Fan
A 120 mm PWM-enabled Fluid Dynamic Bearing (FDB) fan delivers high airflow in a slim 15 mm profile.
Quiet Operation with Noise Reduction Option
A visible 6-phase fan motor helps maintain noise levels under 24.2 dB(A), with a low-noise adapter cable included for further acoustic optimization.
Reinforced, Easy Installation
An all-metal backplate is simple to install, distributes mounting pressure evenly, and adds reinforcement behind the CPU socket.
ITX Motherboard Compatibility
Designed to fit ITX layouts while providing effective cooling for CPU and adjacent components.

Socket Compatibility

Intel: LGA1700 / 1200 / 1151 / 1150 / 1155 / 1851
AMD: AM5 / AM4

Specifications

Category	Specification
Product Dimensions	122 × 120 × 67 mm (L × W × H)
Heatsink Dimensions	121 × 120 × 52 mm (L × W × H)
Net Weight	628 g
Heatpipes	6 mm × 6 pcs
Fan Dimensions	120 × 120 × 15 mm (L × W × H)
Bearing Type	Fluid Dynamic Bearing
Fan Connector	4-pin PWM
Fan Rated Voltage	12 VDC
Fan Rated Current	0.27 A
Fan Power Consumption	3.24 W
LED Type	White LED

Fan Performance

Mode	Speed	Airflow	Air Pressure	Noise Level
Standard	500–1850 RPM ±10%	61.56 CFM	1.97 mmAq	≤ 24.4 dB(A)
With Low-Noise Adapter (LSP)	500–1250 RPM ±10%	41.51 CFM	1.19 mmAq	≤ 20 dB(A)

The AN600 delivers powerful top-flow, low-profile cooling with efficient CPU thermal performance and targeted airflow over RAM and VRM components—ideal for compact ITX systems where space and cooling are both critical.
